Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7

1
MOQ
Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102
Engine Power: 70KW/95HP
Transmission Model: Wanliyang 545
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 70mm, Width 10mm
Loading Capacity: 7 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 8mm Side 6mm
High Light:

YUNEI 4102 Engine Underground Mining Truck

,

YUNEI 4102 Engine Small dump truck

,

95HP Underground Mining Truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-7
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 7 Ton Mining Dump Truck



Compact and Agile Design: The Beijun underground tunnel dump truck is designed to be compact and agile, with a small turning radius and a specially designed cab, suspension frame, and cargo compartment. This makes it ideal for operating in narrow spaces, such as underground roadways and ramps, where maneuverability is crucial.



Enhanced Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be hazardous due to poor lighting, slippery surfaces, and other factors.



Powerful Performance: The Beijun underground tunnel dump truck is powered by a robust engine with large torque, excellent grade, and starting performance. This enables it to transport heavy loads efficiently in the underground environment, where the terrain can be challenging.



High Bearing Capacity and Durability: The dump truck is designed according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Additionally, its sturdy construction and components ensure its durability in harsh underground conditions.



Model UQ-7
Engine Model YUNEI 4102
Engine Power 70KW/95HP
Total Dimension
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 750x-6 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3000mm*1800mm*600mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm

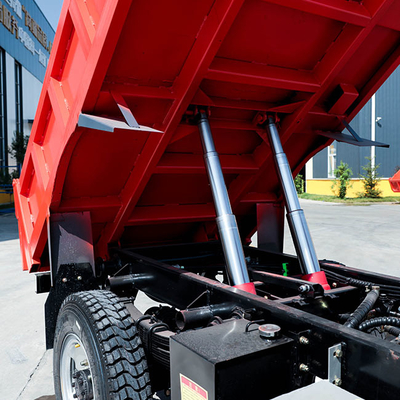

Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 7 Tons




Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7 0Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7 1Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7 2Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7 3Diesel YUNEI 4102 Engine 95HP Small Underground Mining Truck UQ-7 4
