Product parameters of 5 Ton Mining Dump Truck
Maneuverability: Small dump trucks are highly maneuverable and can easily navigate through tight spaces and narrow roads. This makes them ideal for use on smaller job sites, where larger vehicles may struggle to operate.
Fuel Efficiency: Smaller dump trucks are generally more fuel-efficient than their larger counterparts. This means that they can help to reduce fuel costs and are more environmentally friendly.
Versatility: Small dump trucks are highly versatile and can be used for a variety of tasks, including landscaping, excavation, and construction. They can also be used in a range of industries, from agriculture and mining to transportation and waste management.
Cost-effective: Small dump trucks are generally more affordable than larger dump trucks, both in terms of their initial purchase price and their ongoing maintenance costs. This makes them an attractive option for businesses that are looking to minimize their expenses.
Model | UQ-5 |
Engine Model | FAW - 4DW92-73 |
Engine Power | 54KW/73HP |
Transmission Model | WANLIYANG 530 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1069 |
Rear Axle Model | 1069 |
Tire Model | 700x16 Line Tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 100mm |
Size of the Bucket:Length×width×height | U type Bucket 2800mm*1600mm*550mm |
Type of Bucket | |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |

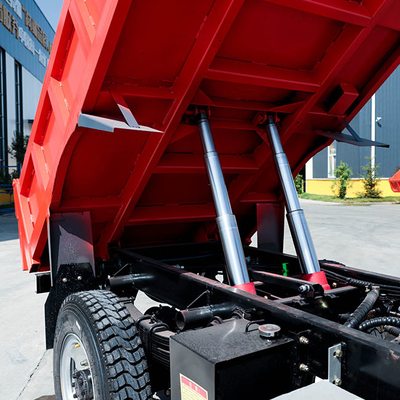

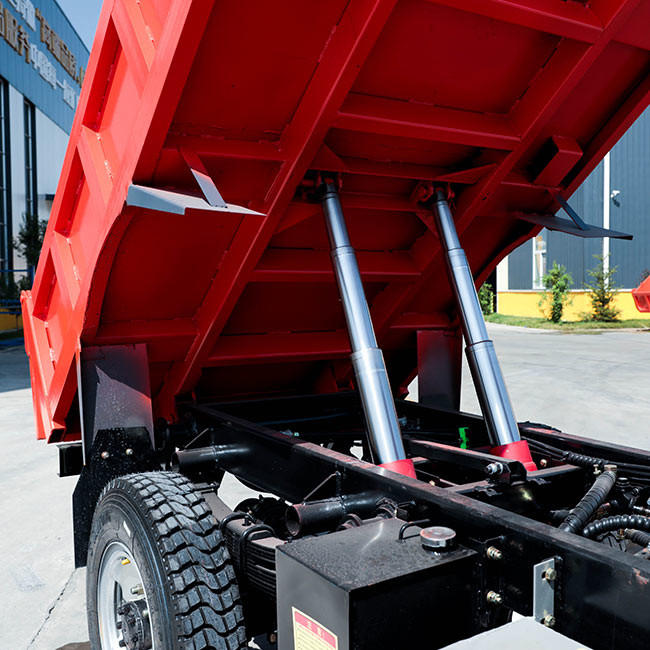

Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy with Glass and Rain Bush |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 6 Tons |
