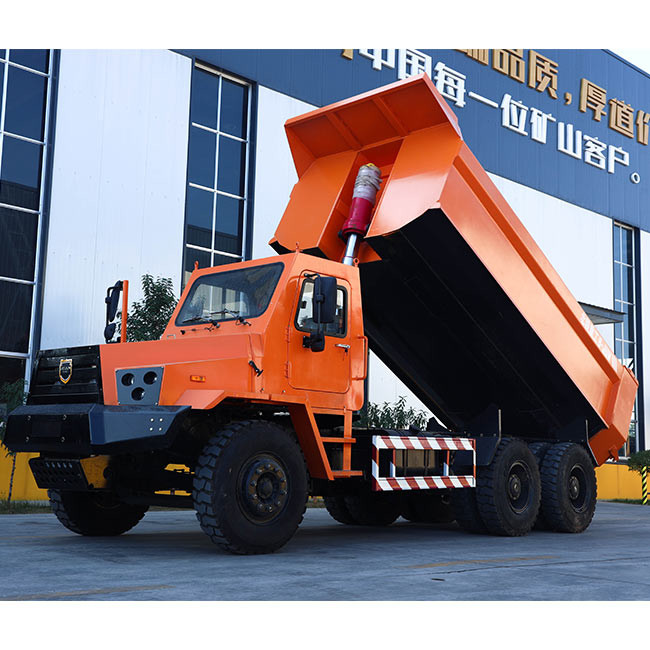

Product Features of 25 Ton Underground Mining Dump Truck
Excellent Trafficability: The Beijun underground tunnel dump truck is designed with a compact structure and small turning radius, making it highly maneuverable in narrow spaces. This allows it to operate flexibly in underground roadways and ramps.

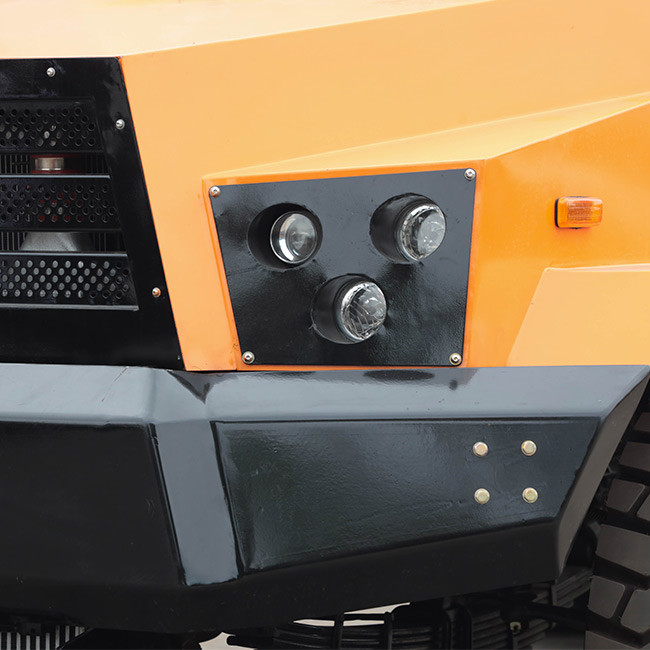

Enhanced Safety Features: The dump truck is designed with improved lamps and electrical components that are waterproof and moisture-proof, as well as dedicated anti-slippery tires. This enhances its obstacle crossing capability and ensures high safety in the underground environment, which is characterized by humid air, insufficient light, and slippery road surfaces.
Strong Power and Performance: With large torque, excellent grade, and starting performance, the Beijun underground tunnel dump truck has strong power that enables it to operate efficiently in the underground environment.
High Bearing Capacity: The dump truck is scientifically configured and designed according to mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. This allows it to transport heavy loads in the underground environment.
Overall, the Beijun underground tunnel dump truck offers a range of advantages over other vehicles in its class, including excellent trafficability, enhanced safety features, strong power and performance, and high bearing capacity. These benefits make it a practical and reliable choice for businesses and organizations that require a robust and efficient vehicle for underground mining or construction operations.
Product parameters of 25 Ton Underground Mining Dump Truck
| Model | UQ-25 |
| Engine Model | Yuchai YC6L340-33 |
| Engine Power | 243KW |
| Total Dimension | 7900x2420x2720mm |
| Transmission Model | FASITE RT11509C |
| Transmission Gear | 10 Forward Gear, 2Back Gear,Rear High Speed Controller |
| Drive Mode | 6x4 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 1100R20 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Front 90*16 Rear 90*24 |
| Size of the Bucket:Length×width×height | 5000x2300x1200mm |
| Type of Bucket | Right Angle Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Closed Cabin with A/C |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 25 Tons |
