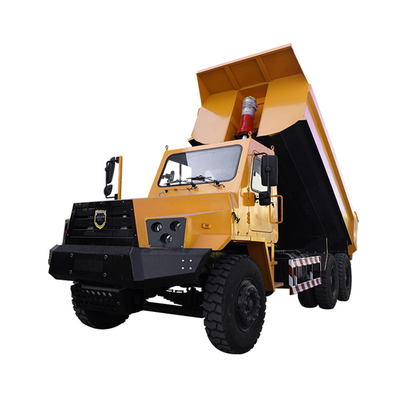

High Performance 25 Ton Dumper 6x4 Dump Truck Underground With 243KW Engine

1
MOQ
High Performance 25 Ton Dumper 6x4 Dump Truck Underground With 243KW Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: Yuchai YC6L340-33
Engine Power: 243KW
Transmission Model: FASITE RT11509C
Drive Mode: 6x4
Dimension Of Bottom Spring Plate: "Front 90*16 Rear 90*24
Cabin: Closed Cabin With A/C
Type Of Bucket: Right Angle Type
Loading Capacity: 25 Tons
Cooling Sytem: Standard Water Cooling System
High Light:

High Performance 25 Ton Dumper

,

High Performance 6x4 Dump Truck

,

243KW Engine Dump Truck Underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-25
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product Features of 25 Ton Mining Underground Dump Truck Tipper Truck



The Beijun underground tunnel dump truck is engineered for excellent trafficability, with a compact structure and small turning radius that enable it to navigate narrow spaces inside the roadway ramp with ease. This makes it a flexible option for mining companies operating in confined underground areas.



Safety is a top priority for the Beijun truck, with improved lamps and electrical components, enhanced waterproofing and moisture-proofing capabilities, and dedicated anti-slip tires. These features provide the truck with strong obstacle-crossing capabilities and high safety standards, making it a reliable choice for underground mining operations.



The Beijun underground tunnel dump truck is equipped with strong power, including large torque, excellent grade, and starting performances. This powerful engine allows the truck to handle heavy loads and steep inclines with ease, improving efficiency and productivity for mining companies.



The truck's scientific design and configuration, based on the mining vehicle design concept, ensures that it has a strong bearing capacity, 1.5 times that of an ordinary road vehicle. This makes it a reliable choice for transporting heavy loads in underground mining operations. Additionally, the truck's rugged construction, including its lifting mechanism, cargo compartment, suspension frame, and vehicle frame, enhances its durability and reliability in harsh underground environments.



Product parameters of  25 Ton Mining Underground 25 Ton Dump Truck Tipper Truck


Model UQ-25
Engine Model Yuchai YC6L340-33
Engine Power 243KW
Total Dimension 7900x2420x2720mm
Transmission Model FASITE RT11509C
Transmission Gear 10 Forward Gear, 2Back Gear,Rear High Speed Controller
Drive Mode 6x4
Front Axle Model Styer Axle
Rear Axle Model Styer Axle
Tire Model 1100R20 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate Front 90*16
Rear 90*24
Size of the Bucket:Length×width×height 5000x2300x1200mm
Type of Bucket Right Angle Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Closed Cabin with A/C
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 25 Tons



High Performance 25 Ton Dumper 6x4 Dump Truck Underground With 243KW Engine 0High Performance 25 Ton Dumper 6x4 Dump Truck Underground With 243KW Engine 1High Performance 25 Ton Dumper 6x4 Dump Truck Underground With 243KW Engine 2
