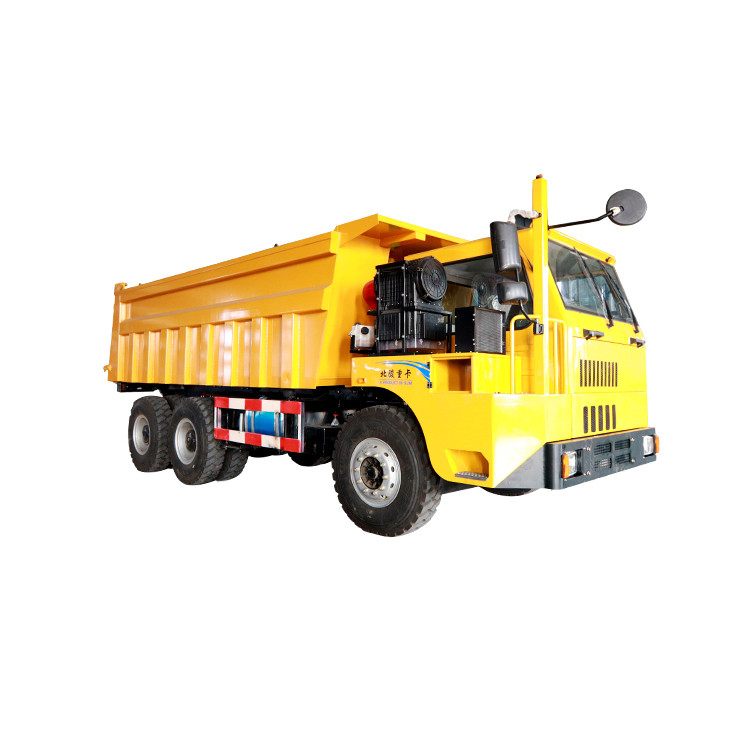

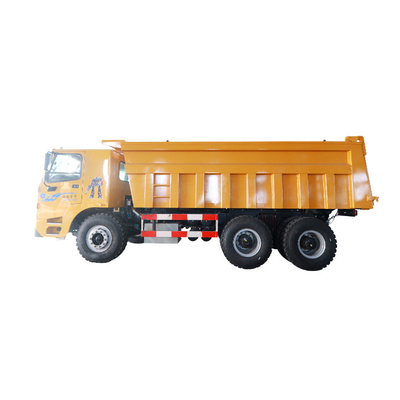

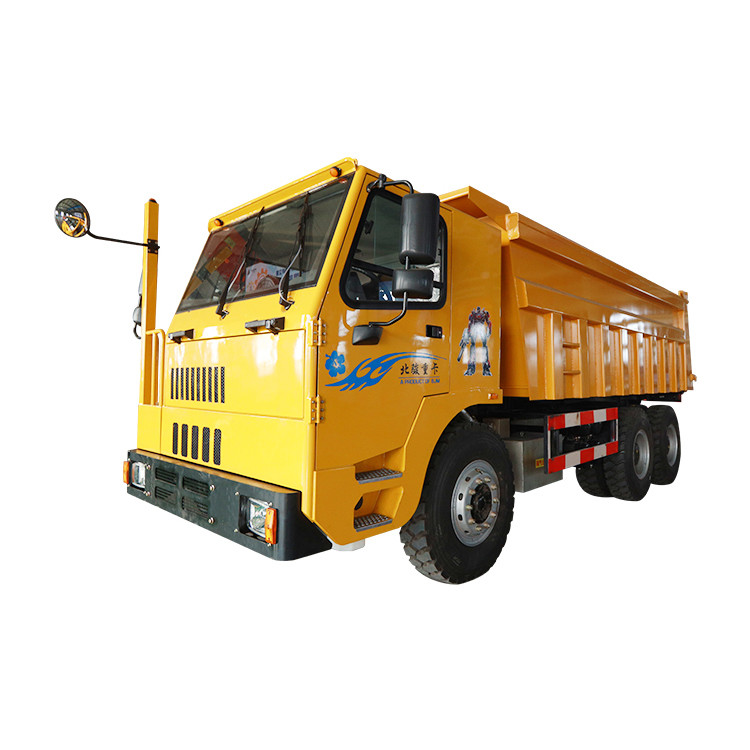

Product Features of 35 Tons Underground Mining 6*4 Dump Truck
1. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
2. Best diesel engine and battery group supplier to assure a robost performance;
3. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
4. Large capacity is put to use for fuel tank, driving mileage is long.
5. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.
Product parameters of 35 Tons Underground Mining 6*4 Dump Truck
Model | UQ-35Q |
Engine Model | YC6MK375-T300 |
Engine Power | 276kW |
Total Dimension | 7748x2500x2700 |
Transmission Model | 10JS220 |
Transmission Gear | 10 Forward Gear, 2Back Gear,Rear High Speed Controller |
Drive Mode | 6x4 |
Front Axle Model | Styer Axle |
Rear Axle Model | Styer Axle |
Tire Model | 12.00R20 |
No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
Dimension of Bottom Spring Plate | Front 90*16 Rear 90*24 |
Size of the Bucket:Length×width×height | 5400x2500x1350mm |
Type of Bucket | Right Angle Type |
Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Closed Cabin |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 35 Tons |
