Ergonomics Canopy Underground Personnel Carriers 19 Person Rated Capacity

1
MOQ
Ergonomics Canopy Underground Personnel Carriers 19 Person Rated Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Model: WCR19
Overall Mass(kg): 8200
Rated Capacity (people): 19
Overall Dimension L(mm)xW(mm)xH(mm): 7253x1960x2030
Wheelbase(mm): 3300
Front Wheelbase(mm): 1550
Rear Wheelbase(mm): 1550
Minimum Ground Clearance(mm): 200
Maximum Tractive Force(kN): 72
High Light:

Ergonomics Canopy Underground Personnel Carriers

,

Underground Personnel Carriers 19 Person

,

Ergonomics Canopy Mining Personnel Carrier

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: WCR19
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

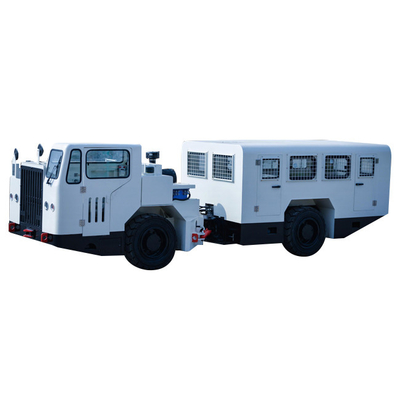

WCR19 Underground Personnel Carrier 19 Person Rated Capacity Transporter Personnel Carrier



Main features
1. The frames are articulated with 40° steering angle.
2. Ergonomics Canopy.
3. Operation Comfort & Safty
4. 4 wheels driving & braking.
5. Front axle is equipped NO-SPIN differential. While rear is ANTI-SLIP.
6. Low vibration level in cab.



Item Main technical parameters
Model WCR19
Overall mass(kg) 8200
Rated capacity (people) 19
Overall Dimension L(mm)xW(mm)xH(mm) 7253x1960x2030
Wheelbase(mm) 3300
Front wheelbase(mm) 1550
Rear wheelbase(mm) 1550
Minimum ground clearance(mm) 200
Climbing capacity(°) 14°
Running speed of each gear(km/h) Forward I gear 0-8
II gear 0-14
III gear 0-30
Reverse I gear 0-8
Reverse II gear 0-14
Reverse III gear 0-30
Minimum passing ability radius(mm) Outboard 6500
Inside 4500
Maximum tractive force(kN) 72
Transmission mode Hydraulic transmission
Braking type Working brake Hydraulic Brake Wet Brake
Parking brake Spring brake Hydraulic release Fail-safe
Drive type Front wheel drive
