15 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance

1
MOQ
USD 5000-15000 Set
Price
15 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1098
Dimension Of Bottom Spring Plate: Length 92mm, Width 13mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 8mm
High Light:

15 Tons underground dump truck

,

Excellent Climbing Performance underground dump truck

,

YUCHAI Engine underground mining dump truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 8-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck



UQ-15 is an underground mining trucks with 15 ton payload for middle and big scale mine. Best payload to own weight ratio in its class. It is full of features to help mines maximize tons and minimize costs. Mine trucks for underground mining and tunneling applications includes models with payload capacities from 6-30 tonnes. The computerized drive system, Rig Control System, provides service information and diagnostics that are logged as well as displayed on the screen inside the cab. Our mining dump trucks are built with safety and ease of operation in mind. Standard safety features and comfortable work conditions adds to increased production. Optimized transmission design increases the traction force by 10% compared with competing products, to ensure that it can meet the continuous heavy uphill working conditions, which enhances the adaptability of the machine to high temperature conditions. Standard Operator Present System, which protects the machine and operator from uncontrolled machine movements, with hydraulic system neutralization and door sensor.Safer access and egress with anti-skid upper deck surfaces, upper deck handrails and 3-point cabin and machine access.



1. Mining machines: Underground loader, Underground truck etc.
2. Hydraulic piston pumps and motors: Rexroth, Sauer , Eaton etc.
3. Gearbox reducer: Concrete mixer truck etc.
4. Hydraulic parts: Hydraulic valve etc.


We stick to the principle of "quality first, communication first, service first", and provide the best quality products and the excellent after-sales service for our customers.The equipment has the charateristics of compact size,strong climing ability, fast running speed, high reliability, and low maintenance costs. It is suitable for the transportation and construction of metallurgy, metal mines, railways, highway tunnels, hydraulic culverts, underground mines tunnels and military culverts,etc.



Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons

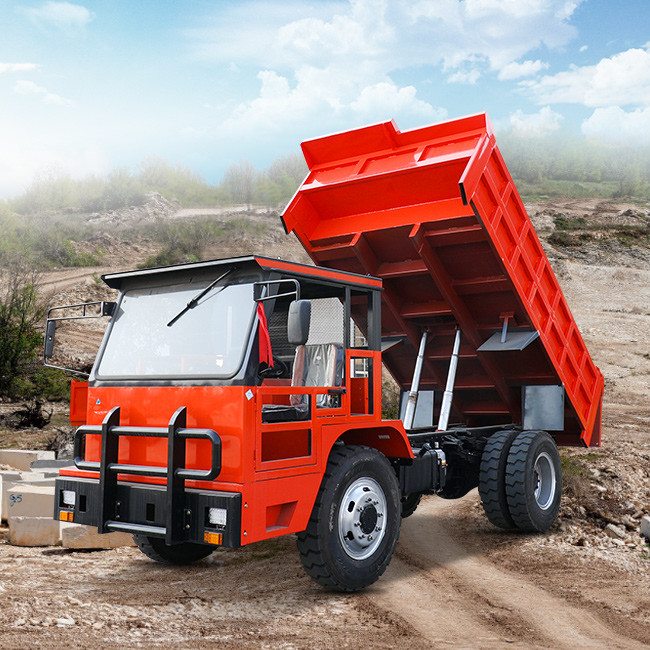

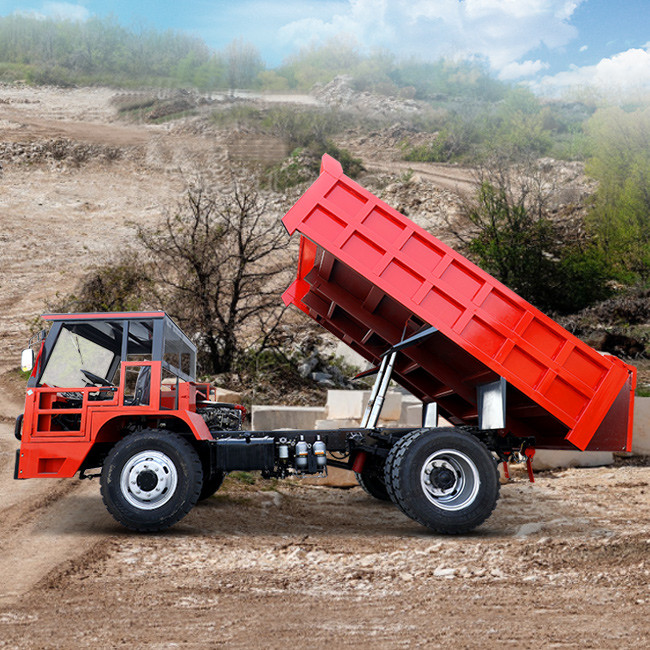

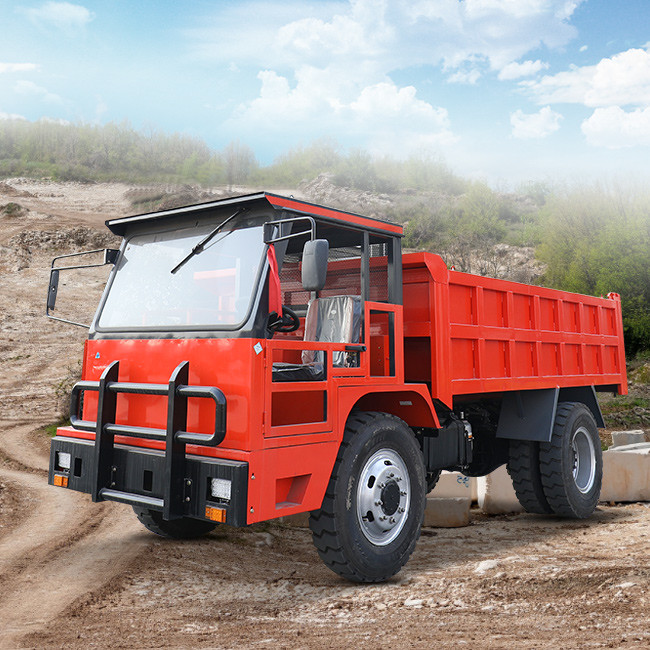

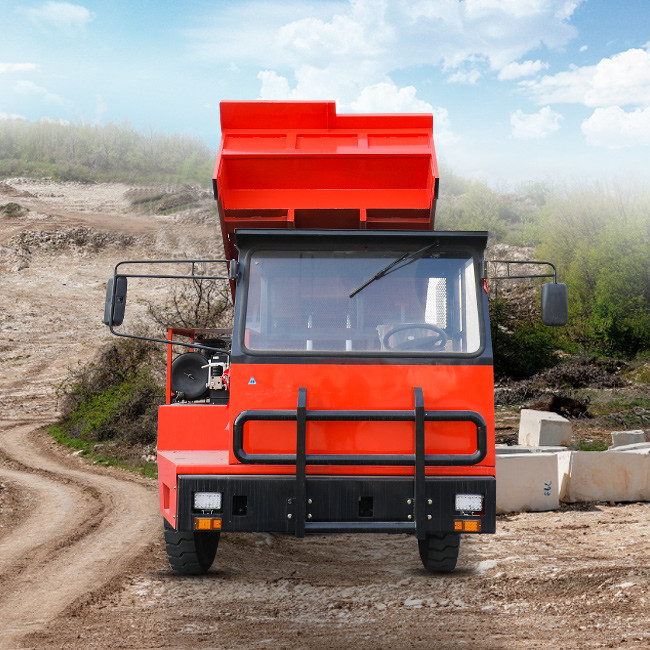

15 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance 015 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance 115 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance 215 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance 315 Tons YUCHAI Engine Underground Dump Truck With Excellent Climbing Performance 4
