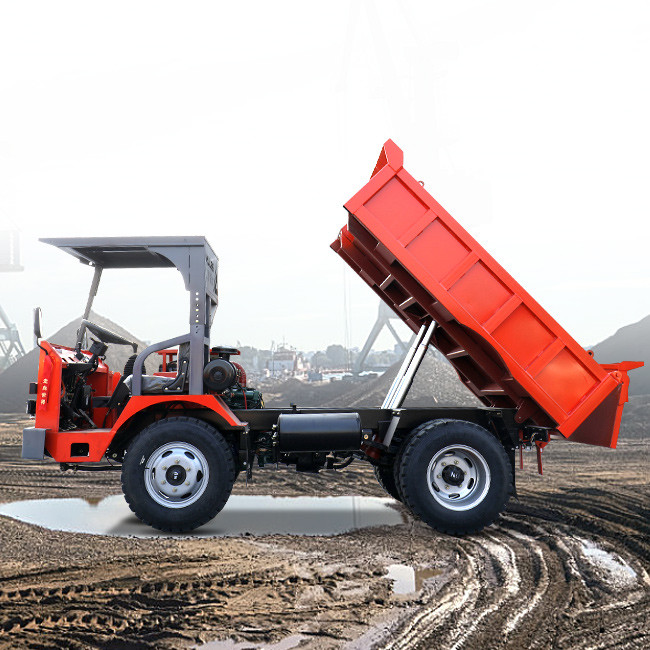

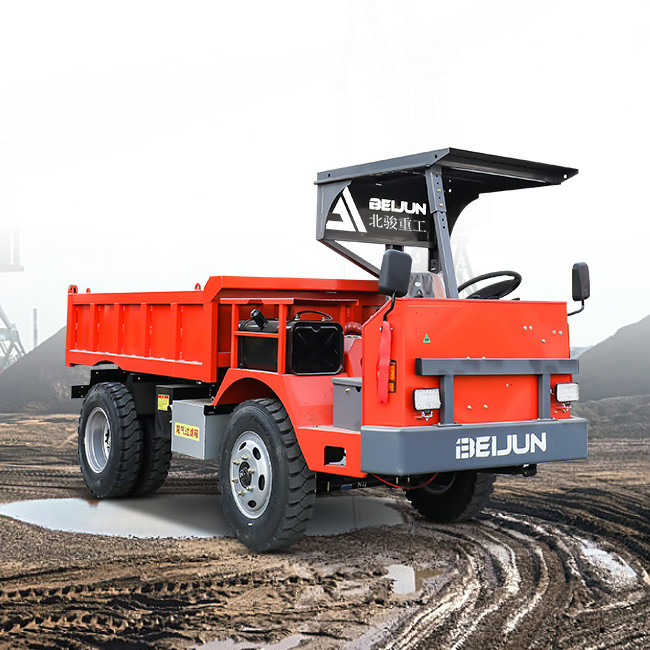

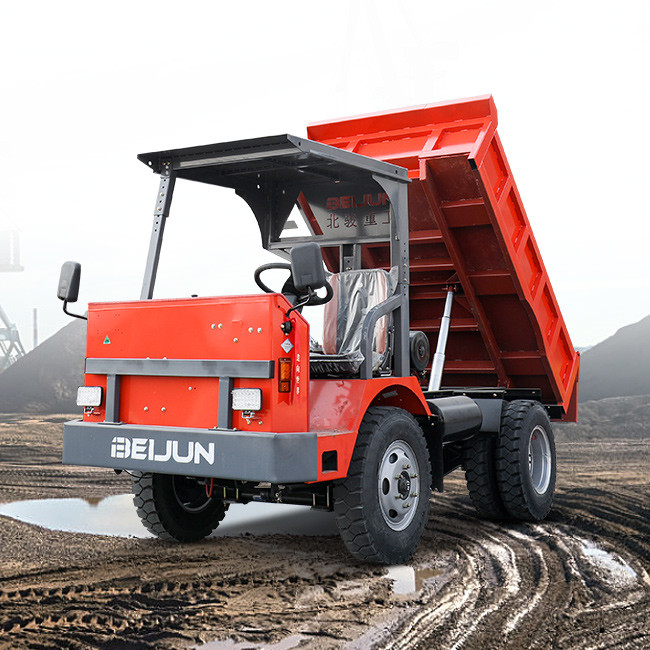

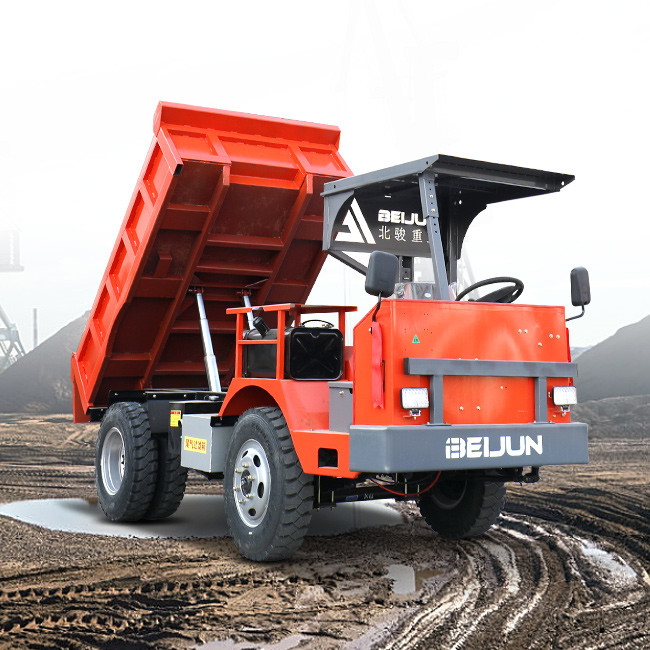

Product parameters of 3 Ton Dump Truck
This vehicle model is designed to adapt to mines with narrow alleys and low heights, with a complete frame, rear axle drive, and front wheel steering. Select a gearbox with secondary transmission, equipped with Yunnei 490 National III engine; Large speed range, resistant to high torque and traction, high speed, saving time. Installing water filtration effectively reduces emissions; Specially manufactured ultra narrow axle, with a vehicle width of only 1.5 meters. Four wheels adopt wet braking, effectively ensuring performance during use; Adopting pneumatic assisted clutch device, easy, effective, and reliable; Full hydraulic cylinder system steering device, easy and flexible operation; Double oil cylinder self unloading device, stable and long service life; Special leaf spring for underground mining vehicles, durable and reliable; Standard engine front long head design provides driver protection.
The cross-section of the car body is V-shaped or U-shaped, supported on the flipping track of the frame, and the car body is flipped and unloaded on the flipping track. The tipping bucket mining car (i.e. the side tipping mining car, also known as the mining bucket) is mainly composed of the following parts: the mining car body, frame, buffer mining car collision head, three ring chain, mining car pin wheel axle, and wheels, etc. The volume of mining trucks is determined based on the annual transportation volume. Mines with an annual transportation capacity of less than 300000 tons use fixed mining trucks with a volume of 0.6-1.2 meters. When constructing new trackless mines or carrying out technical renovations on trackless mines, trackless vehicles should be used. Trackless vehicles can transport loose materials, as well as mechanical equipment and personnel. The structure of trackless vehicles for transporting bulk materials is similar to shuttle mining cars, with a scraper conveyor installed at the bottom of the vehicle for transporting materials from excavation work to the outside. There is great potential for development under suitable mining conditions
Model | UQ-3 |
Engine Model | CHANGCHAI 490 |
Engine Power | 63 HP |
Transmission Model | Ningjing 130 |
Transmission Gear | 4 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x4 |
Front Axle Model | CHITONG ISUZU Axle |
Rear Axle Model | CHITONG ISUZU Axle |
Tire Model | 700x16 Line Tire, Rear Single Tyre One Side, |
No.of Bottom Spring Plate | Front 7 PCS, Rear 8 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 10mm |
Size of the Bucket:Length×width×height | 2400mm*1300mm*450mm |
Type of Bucket | U type Bucket |
Thickness of Bucket Steel Plate | bottom 6mm side 4mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 3 Tons |
