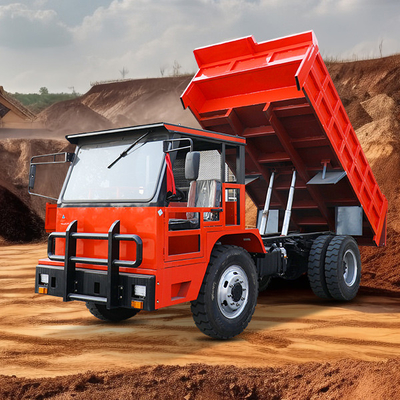

CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP

1
MOQ
USD 5000-15000 Set
Price
CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1098
Dimension Of Bottom Spring Plate: Length 92mm, Width 13mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 8mm
High Light:

CE Certification Underground Articulated Dump Truck

,

160HP Underground Articulated Dump Truck

,

15 Tons Dump Truck Underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 6-18 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck



BEIJUN offers high performance underground loaders, haulers and dumpers. Our wide range of hauling capacities and frame styles makes it easy to fit your specific needs, whether you choose a diesel truck or a battery driven vehicle. UQ-15 high performance underground loaders, haulers and dumpers are designed with reliability, serviceability, safety and operator comfort in mind. Our wide range of hauling capacities and frame styles, makes it easy to fit your specific needs. From large scale development to narrow vein mining, we have the mining vehicles to boost your productivity.



UQ-15 is a special equipment specially designed and manufactured for underground non-coal mines to transport loose materials after blasting; It can also be used in railway, highway, water conservancy and other tunnel projects, especially suitable for poor working conditions, narrow, low and muddy working surfaces. The power system adopts today's advanced engine and is equipped with exhaust muffler purifier; The transmission system adopts hydraulic torque converter and power shift gearbox, which is easy to operate and stable; The working braking system adopts wet multi-disc braking, which increases the safety factor and is safe and reliable when working in harsh environment, high water content and muddy tunnels.



The mining tip truck is compact in structure. The height is low, suitable for mining at thin ledge.The carriage of this tipper lorry is self lighting type, which can load and transport various materials and ores.The driving brake of this UQ-15 mining dump truck is wet type and multi-discs, which has stable performance and less maintenance.





Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons


CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP 0CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP 1CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP 2CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP 3CE Certification Underground Articulated Dump Truck 15 Tons Coal Mine Engine 160HP 4
