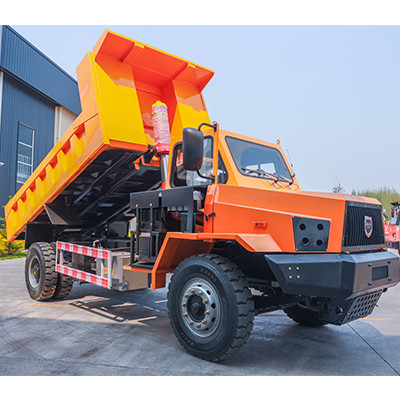

Product parameters of 20Ton Underground Mining Dump Truck
UQ-20 has all-terrain self-adaptive driving technology, integrated control technology for safe driving and riding, thermal energy control and management technology, stability control technology for large flow hydraulic dump system, intelligent machine interaction and diagnosis technology. The whole vehicle features high safety, high reliability and high intelligence. The machine also highlights strong power, low energy consumption, easy maintenance, and high driving comfort. It is mainly used for short distance transportation of concrete, sand, earthwork, coal, ore and other bulk materials in construction, water conservancy, road construction and mining. Standard safety features and comfortable work conditions adds to increased production.
High Performance Engine
The combination of strong power and outstanding vehicle performance provides higher productivity with less cost.
Reliable Brake System
The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which gives the operator greater confidence at higher speeds when travelling downhill.
Advance Driven System
Multifunction transmission integrated with a variable torque converter having locking function, integrated hydraulic retarder unit, advanced performance and reliability. Gearbox shaft differential lock drive with higher ability. The middle and rear drive shaft linked, real-time driving; wheel differential lock to effectively deal with the bad road.
Shandong Beijun Heavy Industry Co., Ltd. is a professional enterprise dedicated to the R&D and manufacturing of mining machinery and construction machinery. The company is located in Jining, Shandong.
| Model | UQ-20 |
| Engine Model | YUCHAI Engine with Turbocharge |
| Engine Power | 290HP |
| Total Dimension | 6200*2400*2450mm |
| Transmission Model | FASITE 9JS118 |
| Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 10.00-20 Radial steel tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
| Size of the Bucket:Length×width×height | 4500mm*2400mm*1000mm |
| Type of Bucket | U- Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 20 Tons |
