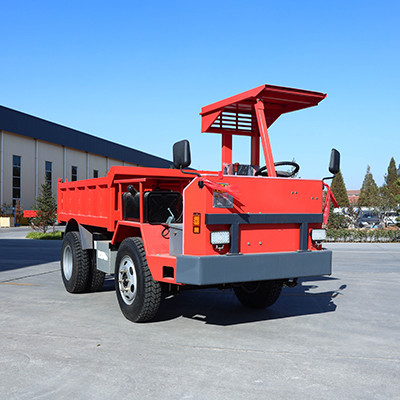

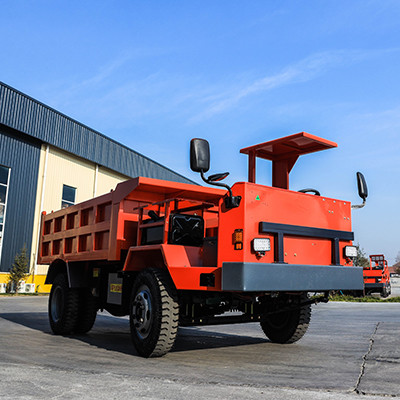

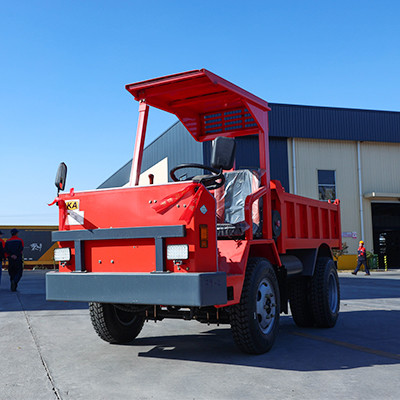

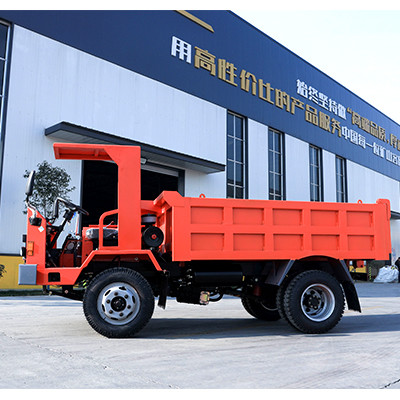

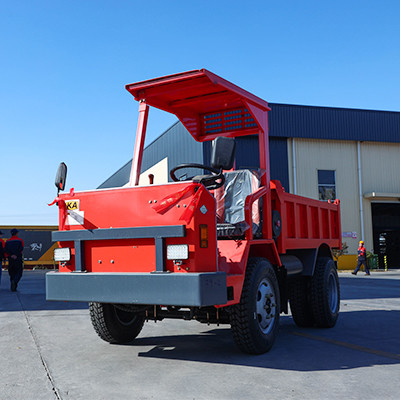

Product parameters of Mini Underground Mining Dump Truck with Loading Capacity 1ton to 5 tons
UQ-5 is reliable and stable performance, flexible and convenient operation, large driving force, strong climbing ability, stable operation, small turning radius, safe and reliable. Beijun underground mining truck mainly used in underground mines, convenient operation, driving stable. Braking system uses spring brake, hydraulic lift brake, safe and reliable.
Long Service Life:
Enlarging desert filter, greatly reducing the entry of sand and dust, suitable for use in mining areas, prolonging the service life of engine. Superior waterproof performance, the whole vehicle lines and electrical appliances are sealed with high waterproof section, which effectively avoids leakage due to multi-water in the tunnel.
Large Angle Steering:
Large angle steering, small turning radius, suitable for narrow and multi-bend complex road conditions. Formal frame is adopted in China, which has better flexibility than traditional frame and remains unchanged after heavy pressure.
Various Specifications:
The compartment of underground dump truck can be divided into two types: backward tipping and side tipping. The piston rod motion is controlled by operating system, and backward tipping is more common. The piston rod pushes the piston rod to tilt the compartment. A few of the two-way tipping occurs. High-pressure oil enters the lifting hydraulic cylinder through distribution valve and oil pipe. The front of the compartment has cab safety shield.
By constantly providing customers with high-performance products and professional technical support, as well as close cooperation with customers, our company has achieved mutual benefit and win-win results with customers. Facing the future,let's base ourselves on a new starting point, climb a new peak, and create a more brilliant tomorrow with you.
Model | UQ-5 |
Engine Model | FAW - 4DW92-73 |
Engine Power | 54KW/73HP |
Transmission Model | WANLIYANG 530 |
Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1069 |
Rear Axle Model | 1069 |
Tire Model | 700x16 Line Tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
Dimension of Bottom Spring Plate | Length 70mm, Width 100mm |
Size of the Bucket:Length×width×height | U type Bucket 2800mm*1600mm*550mm |
Type of Bucket | |
Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy with Glass and Rain Bush |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 6 Tons |
