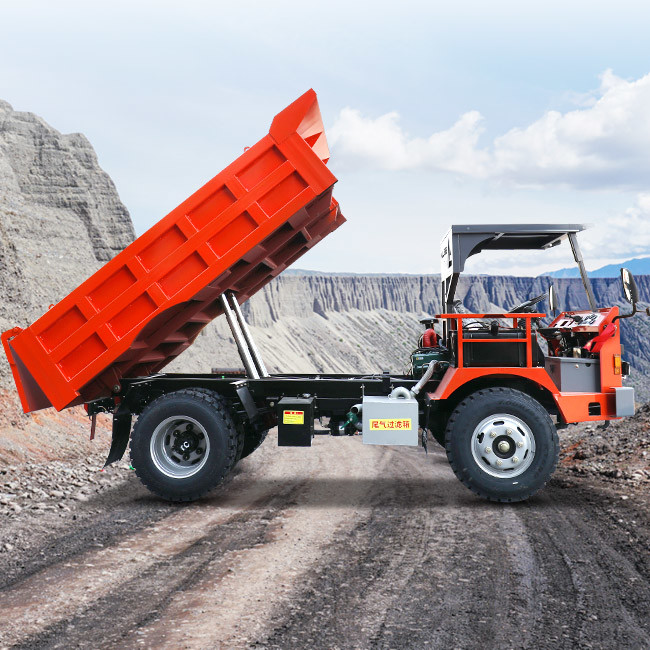

Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2

1
MOQ
Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: FAW - 4DW92-73
Engine Power: 54KW/73HP
Transmission Model: WANLIYANG 530
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 71mm, Width 99mm
Loading Capacity: 5 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 8mm Side 6mm
High Light:

5 ton underground dump truck

,

5 ton dump truck underground

,

mining transportation dump truck underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-5
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 9 - 16 days
Payment Terms: L/C, T/T
Product Description

Product Parameters Of 5 Ton Underground Dump Truck



This 5 ton dumper truck is professionally designed according to the characteristics of underground mining. four-wheel drive ,Low speed torque strong climbing ability. Four-wheel spring plate shock absorption, Four-wheel solid tire with Strong carrying capacity,8MM thinkness steel plate for the bucket.Double hydraulic cylinder steering,easy to operating.Exhaust gas treatment of metal catalysis and filtering devices, effectively reducing emissions.side cab driving design can be lower the height for this dumper truck.



we manufacture and supply a full range of heavy equipment components and equipment attachments to the global customers who are looking for high quality parts of construction equipment including bulldozers, excavators, diggers, loaders, and industrial trucks.


Model UQ-5
Engine Model FAW - 4DW92-73
Engine Power 54KW/73HP
Transmission Model WANLIYANG 530
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1069
Rear Axle Model 1069
Tire Model 700x16 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 100mm
Size of the Bucket:Length×width×height U type Bucket 2801mm*1601mm*551mm
Type of Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy with Glass and Rain Bush
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 6 Tons



Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2 0Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2 1Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2 2Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2 3Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2 4
