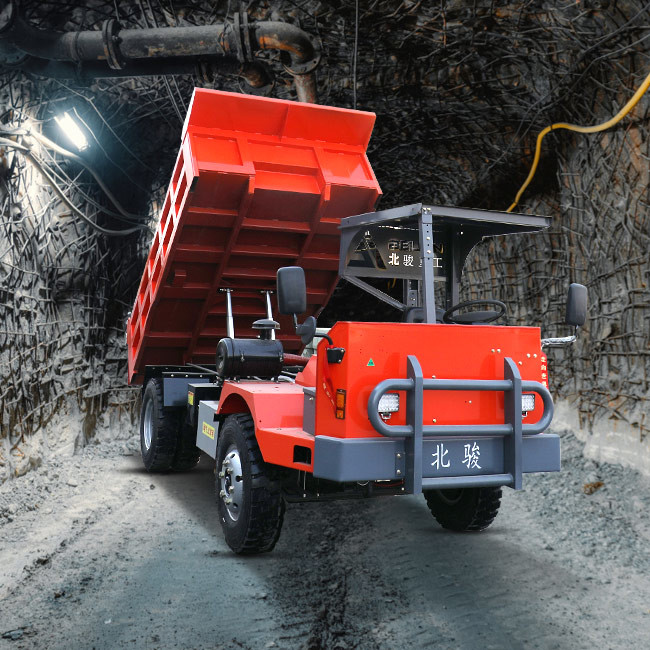

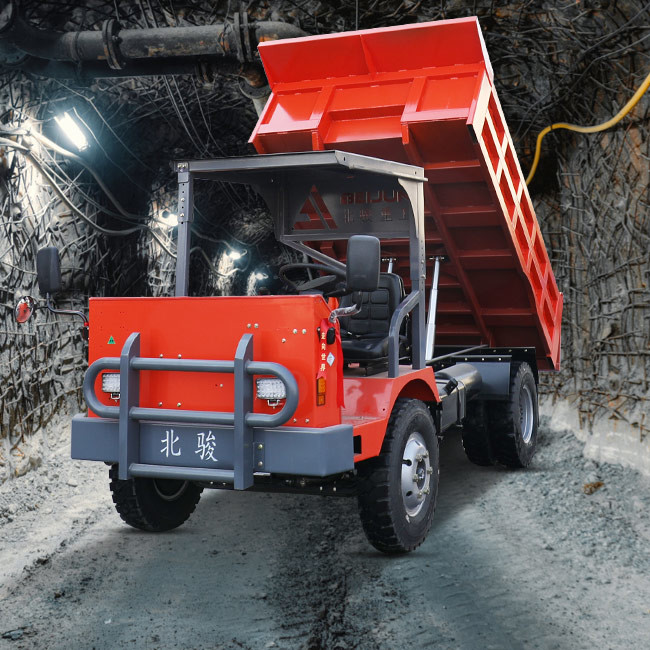

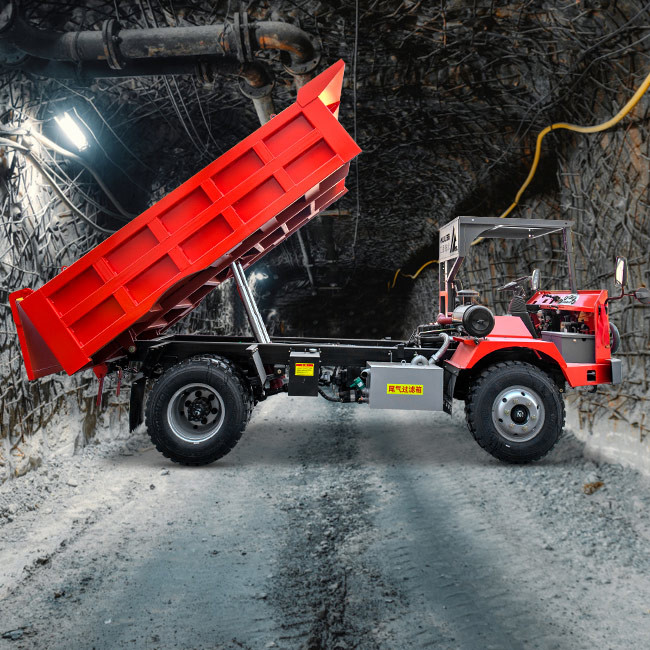

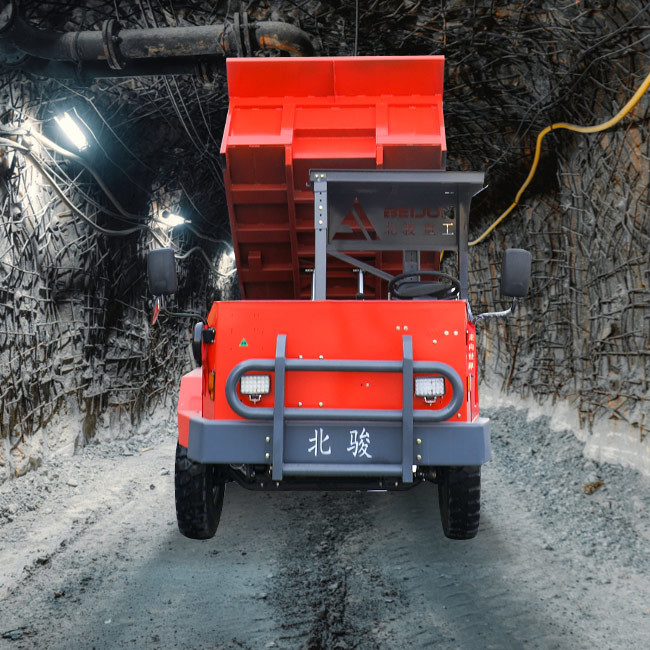

High Loading 7 Ton Underground Articulated Truck Mining 4*2

1
MOQ
USD 1000-7000 Set
Price
High Loading 7 Ton Underground Articulated Truck Mining 4*2
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102
Engine Power: 70KW/95HP
Transmission Model: Wanliyang 545
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 69mm, Width 11mm
Loading Capacity: 7 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 8mm Side 6mm
High Light:

high loading underground articulated truck

,

4*2 underground articulated truck

,

7 ton dump truck underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-7
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 9 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 7 Ton Self Dumping Carrier Tipper Mini Dumper Mining Dump Truck For Sale



UQ-7 is the main product of our company, mainly used in mining, brick factory, sanitation cleaning and other industries. After many times of professional improvements and technical precipitation, the product has a number of advantages: large power, heavy load. It can adapt to a variety of difficult environment, without many requirements for road conditions. Taking electricity as energy highlights our concept of saving resources and protecting the environment. Therefore, this product has been popular with customers for a long time.



UQ-7 Underground Mining Dump Truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. In civil engineering, it often cooperates with excavators, loaders, belt conveyors and other construction machinery to form a loading, transportation, and unloading production line, and performs the loading, unloading and transportation of earthwork, sand, and bulk materials. The vehicle steering is easier to solve the problem of heavy mechanical steering caused by heavy truck in the industry; Equipped with emergency steering, to solve the problem of steering failure after engine flame out or steering pump failure.



Shandong Beijun Heavy Industry Co., Ltd. has a strong technical force, a sound quality assurance system, perfect testing facilities, mature technological processes,and stable process capabilities, which provide a solid foundation for meeting customer needs and realizing the company's sustainable development. There are currently more than 200 employees, including more than 30 technicians, 40 marketing managers, 15 professors of Mechanical Design. Beijun people always insist on independent research and development and continuous innovation.



Model UQ-7
Engine Model YUNEI 4102
Engine Power 70KW/95HP
Total Dimension
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 750x-6 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3000mm*1800mm*600mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 7 Tons




High Loading 7 Ton Underground Articulated Truck Mining 4*2 0High Loading 7 Ton Underground Articulated Truck Mining 4*2 1High Loading 7 Ton Underground Articulated Truck Mining 4*2 2High Loading 7 Ton Underground Articulated Truck Mining 4*2 3High Loading 7 Ton Underground Articulated Truck Mining 4*2 4
