Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton

1
MOQ
Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: CHANGCHAI 490
Engine Power: 63 HP
Transmission Model: Ningjing 130
Drive Mode: 4x4
Dimension Of Bottom Spring Plate: Length 69mm, Width 11mm
Loading Capacity: 3 Tons
Type Of Bucket: U Type Bucket
Thickness Of Bucket Steel Plate: Bottom 6mm Side 5mm
High Light:

3 ton underground haul truck

,

4x2 underground haul truck

,

4x4 dump truck underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-3
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7-18 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 3 Ton Mini Wheel Dumper Truck Use Vehicle Hydraulic Diesel Underground Mine Small Dump Truck For Mining



The features of UQ-3 is unique design with humanization, the main parts are imported from USA with global warranty and multi-functional machine with a variety of optional accessonries. Mini dumper is mainly composed of hopper and walking chassis, simple operation and easy maintenance. adapt to a wider range of different road conditions. It is suitable for short-haul transportation of various bulk materials such as gravel, earthwork, coal, ore, etc. It usually has the mechanical return function.



1. Wide range of use, simple structure, smooth transmission, labor-saving operation, easy to realize automatic control.

2. Suitable for swamp, river beach, desert, paddy field, tropical rain forest, snow and ice and other complex road conditions.

3. High traction, good slope climbing and ground grasping performance, and strong transport capacity.

4. Small turning radius, flexible, especially suitable for narrow field.

5. Equipped with electric start, concentrated handle, easy to operate.

6. Specific size can be customized according to demand.Carrying capacity is strong,Climbing ability,simplicity of operator,Maintenance easy.



Shandong Beijun Heavy Industry Co., Ltd. is a professional enterprise dedicated to the R&D and manufacturing of mining machinery and construction machinery. The company is located in Jining, Shandong. It covers an area of 100 acres and has a building area of 20,000 square meters. The company has successively passed ISO9001 quality system certification, EU CE certification and mine safety production qualification. Established a set of ERP information management system for enterprise resource planning, using advanced IT technology to provide the most effective management support for the enterprise.



Model UQ-3
Engine Model CHANGCHAI 490
Engine Power 63 HP
Transmission Model Ningjing 130
Transmission Gear 4 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x4
Front Axle Model CHITONG ISUZU Axle
Rear Axle Model CHITONG ISUZU Axle
Tire Model 700x16 Line Tire,
Rear Single Tyre One Side,
No.of Bottom Spring Plate Front 7 PCS, Rear 8 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 2400mm*1300mm*450mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 6mm side 4mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 3 Tons

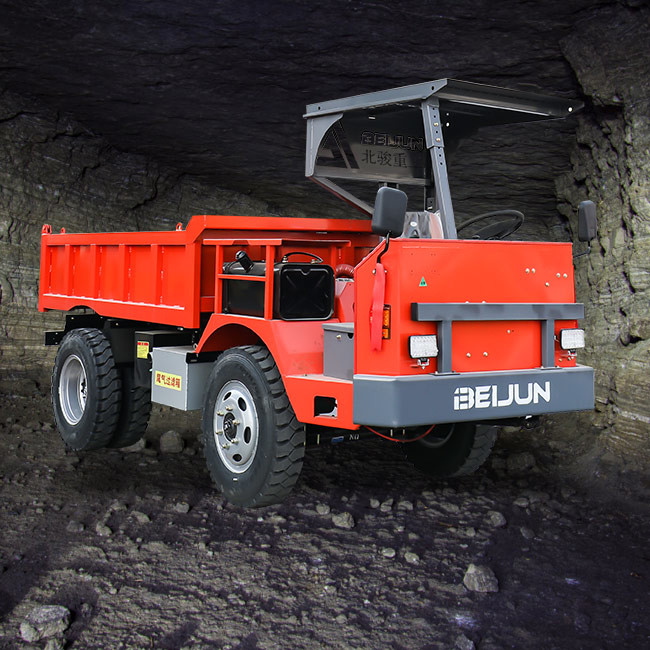

Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton 0

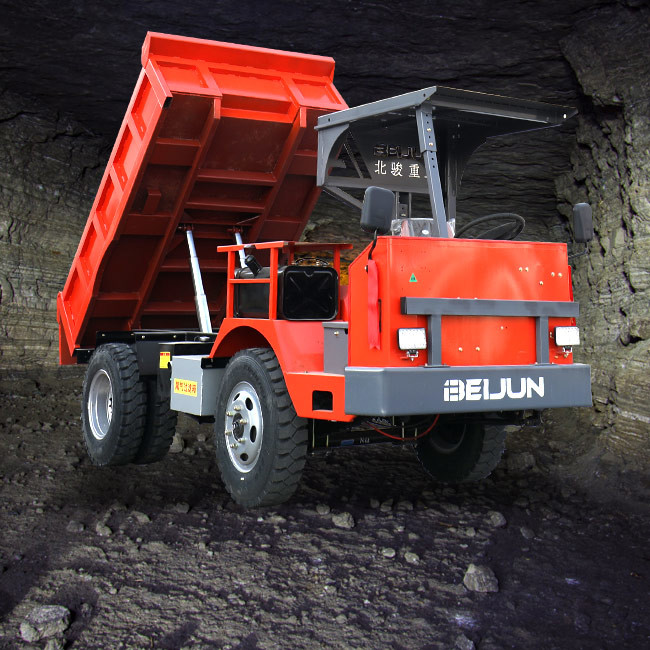

Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton 1

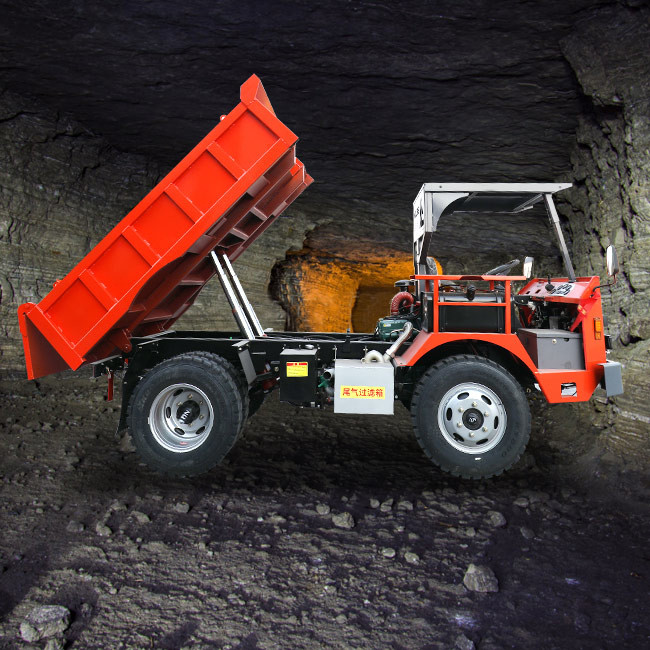

Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton 2

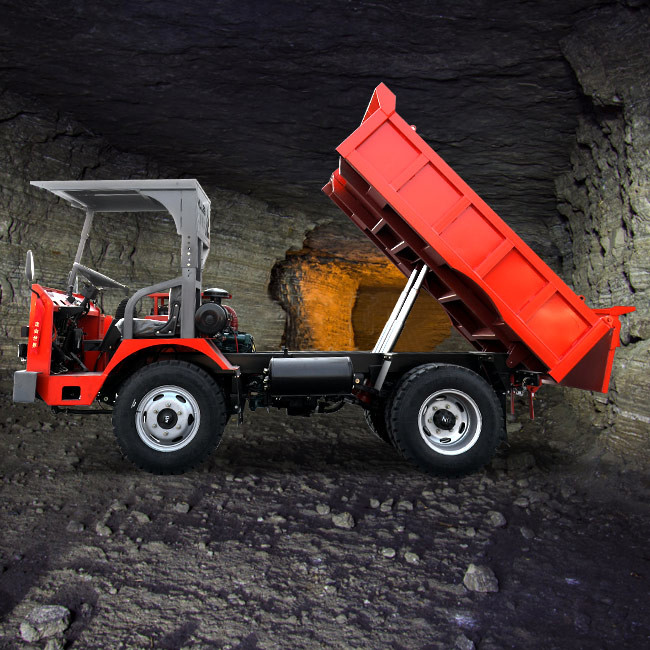

Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton 3

Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton 4

Uq-3 Underground Articulated Truck Compact 4x4 4x2 Drive Mini Wheel 3 Ton 5
