Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining

1
MOQ
Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUCHAI 4108 With Turbocharge
Engine Power: 118KW/160HP
Transmission Model: FASITE 8JS118
Front Axle Model: 1098
Dimension Of Bottom Spring Plate: Length 92mm, Width 14mm
Unloading Type: Hydraulic Double Top Dump
Type Of Bucket: U Type
Thickness Of Bucket Steel Plate: Bottom 10mm Side 9mm
High Light:

15 tons underground dump truck

,

customized mining underground dump truck

,

15 tons dump truck underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-15
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7-15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck



The 15 ton underground dump truck is composed of chassis and frame, dump body, suspension system, tires and wheels. The powertiain is engine, transmission and differential, the loading capacity is 15 tons.The product is designed and produced according to national standards, and all indicators of the product meet national standards. The underground mining dump truck is equipped with hydraulic brake, which is stable, safe and reliable. Gravity discharge is adopted for hopper, and the mechanical bucket of collision block type is easy to operate, and the dump and bucket are reliable.



For each dump truck, We must do quality test and inspection, and we have more than 30 QC & QA people on the production process and the test and warehouse process for quality guarantee all the detailsWe will provide the following safety operations and guidelines:

·Operator Training and Certification

·Load Securing Techniques

·Emergency Procedures and Protocols

·Maintenance and Inspection Routines

·Ensuring Compliance with Industry Standards

·Dealing with Common Mechanical Issues

·Extending the Lifespan of Your Underground Dump Truck



With well experienced special truck production company to offer high quality and competitive prices special truck to our worldwide valuable customers. An professional team which is experienced with international market and has strong technical capability to customized cost effective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40 years' experience in the trailer field. You will get the out-standing quality assurance.



Model UQ-15
Engine Model YUCHAI 4108 with Turbocharge
Engine Power 118KW/160HP
Total Dimension 5600*2300*2000mm
Transmission Model FASITE 8JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 153
Tire Model 825-16 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 12 PCS, Rear 10PCS, Spare 8PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4000mm*2200mm*800mm
Type of Bucket U Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 15 Tons

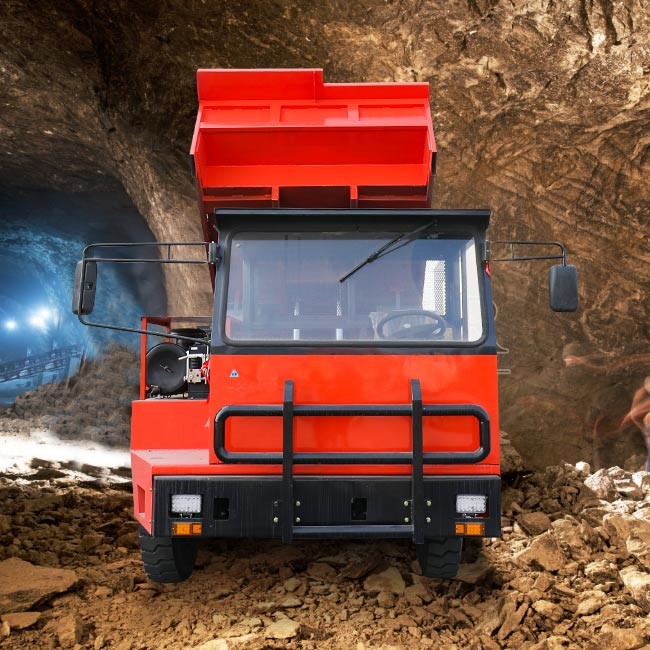

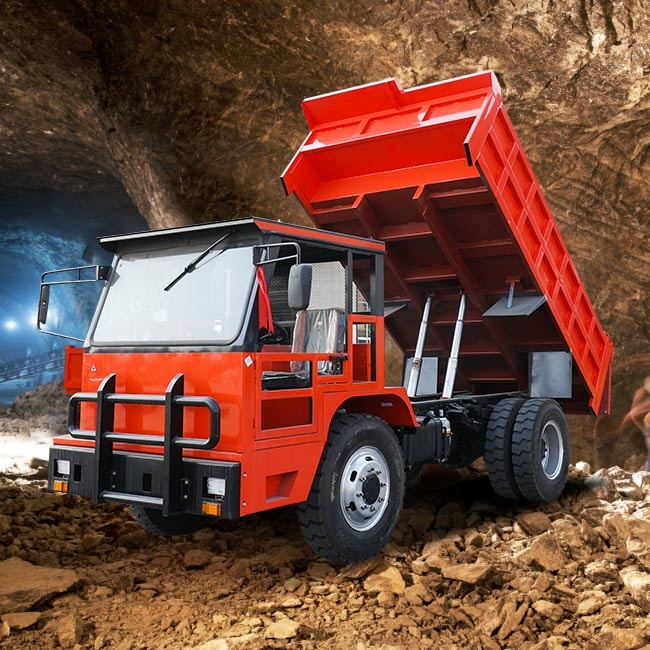

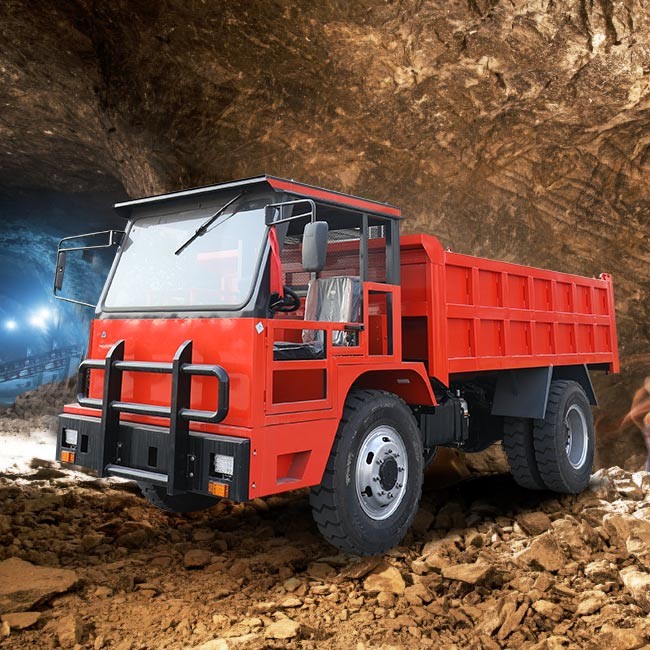

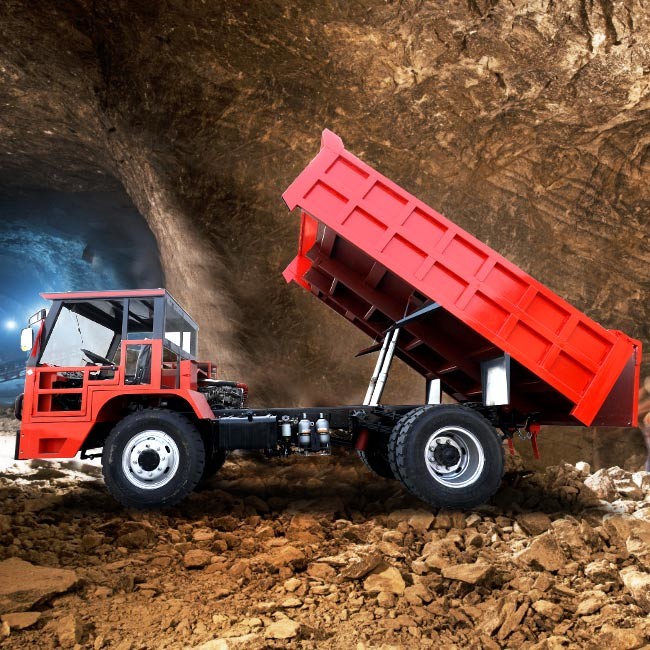

Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining 0Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining 1Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining 2Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining 3Customized 15 Tons Underground Articulated Truck Automatic 4*2 Drive For Mining 4
