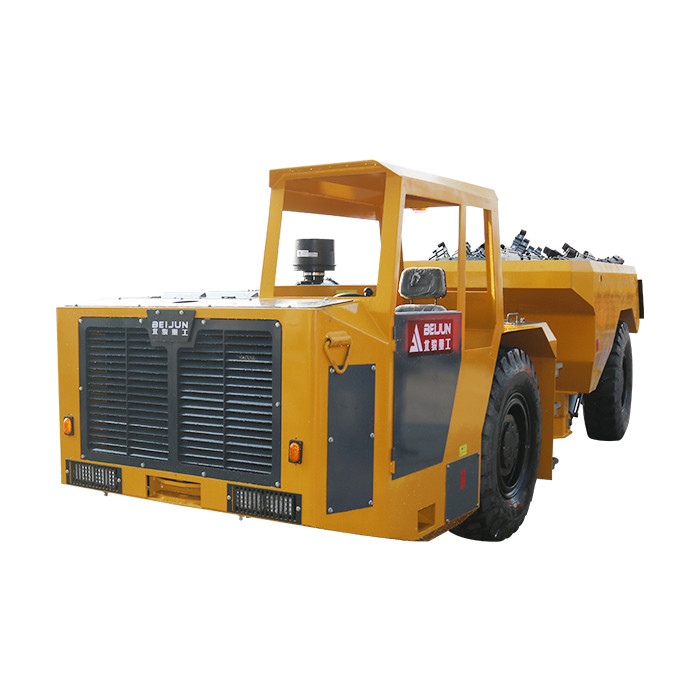

Articulated Mining Dump Truck With Loading Capacity 12 Tons Used For Underground Mine
Adopting the Guosan Weichai engine, it has strong power and good climbing performance, low fuel consumption, and is environmentally friendly and reliable.
Adopting a super large flow rate three stage thousand type air filter (pre filter+coarse filter element+fine filter element), with sufficient air volume and good filtration effect.
Special tires for mining, solid and stable, with anti slip stability
| the Specification of Underground Truck BJUK-12 | |
| Dimensions (LxWxH) (mm) | 7734×1951×2357 |
| Curb weight (T) | 12.5 |
| Bumper Bucket volume (m3) | 6 |
| Rated load capacity (T) | 12 |
| Maximum traction force (kN) | 125 |
| Maximum height of the machine when unloading (mm) | 3880 |
| Loading height (mm) | 1951 |
| Minimum ground clearance (mm) | 316 |
| Minimum turning radius (outside) (mm) | 7263 |
| Approach angle (°) | 14 |
| Gradeability (heavy load) (°) | 14 |
| Maximum lift angle of the car box (°) | 69 |
| Dumper lift time (s) | 12 |
| Dumper drop time (s) | 6 |
| Maximum forward speed (Km/h) | 28 |
| Reverse maximum speed (Km/h) | 10 |
| Diesel engine brand | Weichai Power |
| Diesel model | WP6G175E331 |
| Diesel Emissions | EUROIII |
| Diesel engine power | 129kW@2200rpm |
| Max torque/speed | 750Nm/1700rpm |
| Air intake system | Dry three-stage filtration |
| Exhaust system | Exhaust gas purifier |
| Torque Converter Model | YJ320B-1 |
| Gearbox | BS428 |
| Tire | 14.00-24 |
