Features
Specifications
Traveling Speed: 2km
Ground Clearance: 200mm
Wheel Tread: 1380mm
Wheel Base: 1500mm
Rated Working Pressure: 16mpa
Total Motor Power: 11+4kw
Belt Speed: 0.63m/s
Machine Weight: 3100kg
High Light:

Energy Efficiency Crawler Mucking Loader

,

tunnel mucking loader Energy Efficiency

,

2km Crawler Mucking Loader

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: ZWY-50A
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

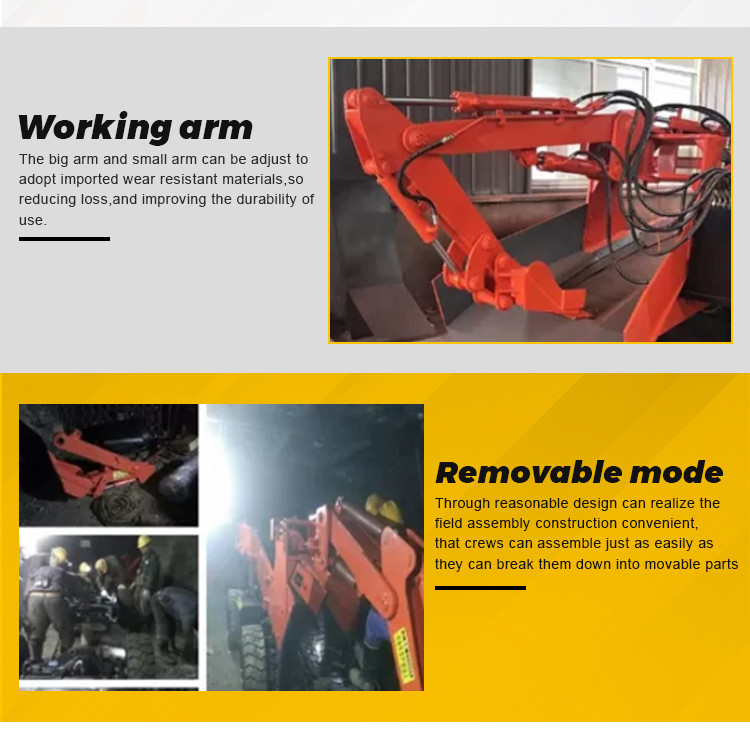

Mucking Loader Wheel Mining Slag Raking Machine Hydraulic Mucking Rock Loaders Wheel Dig Slag Machine



The mucking loader's integration of multiple functions, including excavation, conveying, loading, and running, provides up to 35% more efficiency in tunnel construction. Its adaptability to various spaces and less pollution to the air inside the tunnel make it an essential mechanical equipment for tunnel construction.

The electric hydraulic control system of the mucking loader contains five functions, such as hydraulic walking, mining acquisition, transportation, loading, and bottom clearing, providing up to 35% more versatility and control during operation. Its dual-drive device, electrical installation, and diesel installation offer up to 35% more flexibility in power options, making it suitable for different working conditions.

The mucking loader's load sensing hydraulic priority system provides up to 35% more stability and reliability during operation while also conserving energy. Its reasonable gear ratio matching reduces power consumption, providing up to 35% more efficiency during operation.

The mucking loader's simple structure and reliable performance provide up to 35% more ease of use and maintenance. Its semi-enclosed assembling offers up to 35% more convenience for maintenance and repair, making it more time and cost-efficient.



Model(wheel type) ZWY-50A ZWY-60A ZWY-80A
Traveling Speed 2km 2km 2km/h
Ground Clearance 200mm 200mm 220mm
Wheel Tread 1380mm 1480mm 1700mm
Wheel Base 1500mm 1500mm 1600mm
Rated Working Pressure 16mpa 16mpa 16Mpa
Big Arm Maximum Turning Angle ±73º ±73º ±73º
Total Motor Power 11+4kw 11+4kw 15+4kw
Maximum Material Dimension 650*500*500mm 600*500*500 650*600*500mm
Adaptive Tunnel Gradient ≤15º ≤15º ≤15º
Belt Speed 0.63m/s 0.63m/s 0.63m/s
Overall Dimensions 4600*1380*1600mm 5200*1500*1600mm 6150*1750*1700mm
Machine Weight 3100kg 3400kg 3400kg
Minimum Turning Radius 4m 4m 4.5m
Digging Width 2000mm 2400mm 2400mm
Digging Height 1700mm 1900mm 2100mm
Digging Depth 700mm 700mm 700mm
Digging Distance 1300mm 1550mm 1800mm
Dumping Height 1400-1700mm 1480-1700mm 1700-1900mm
Dumping Distance 1400mm 1400mm 1900(can be raised)
Grade ability ≤15º ≤15º ≤15º
Adaptive Tunnel Minimum Fracture >1.6*1.8m 1.8*2m 2*2.4m
