YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10

1
MOQ
YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 70KW/95HP
Transmission Model: Wanliyang 545
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 70mm, Width 10mm
Loading Capacity: 10 Tons
Type: Underground Mining Dump Truck
Application: Mine
High Light:

70KW Underground Dump Truck

,

YUNEI Engine Underground Dump Truck

,

dump truck 10 ton Fuel Efficiency

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-10
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Product parameters of 10 Tons Dump Trucks



1 Maneuverability: Small dump trucks can easily navigate through tight spaces, narrow roads, and smaller job sites that larger dump trucks cannot.
2 Fuel Efficiency: Smaller dump trucks are often more fuel-efficient than their larger counterparts, and therefore are more cost-effective in terms of fuel consumption.
3 Versatility: Small dump trucks can be used for a variety of tasks, including landscaping, excavation, and construction.
4 Cost-effective: Due to their smaller size, small dump trucks have a lower initial purchase price and lower maintenance costs than larger dump trucks.



Model UQ-10
Engine Model YUNEI 4102 with Turbocharge
Engine Power 70KW/95HP
Total Dimension 4800*1800*1600mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 750-16 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3200mm*1800mm*600mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 10 Tons

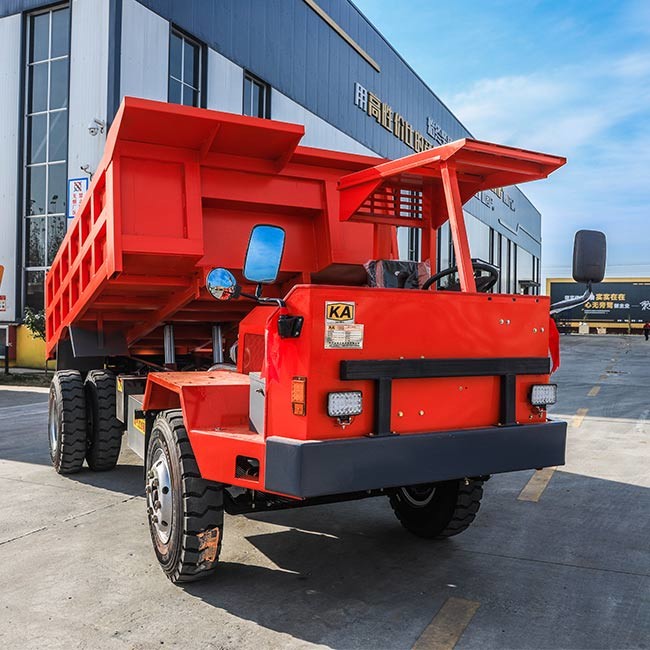

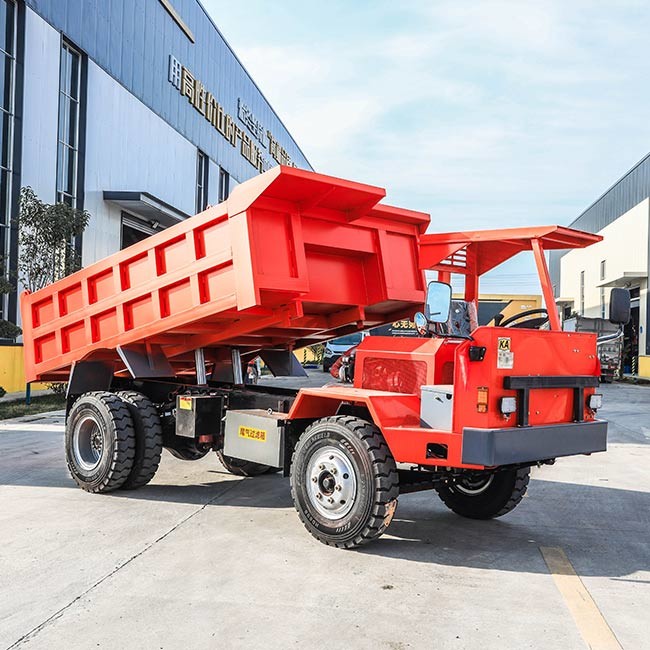

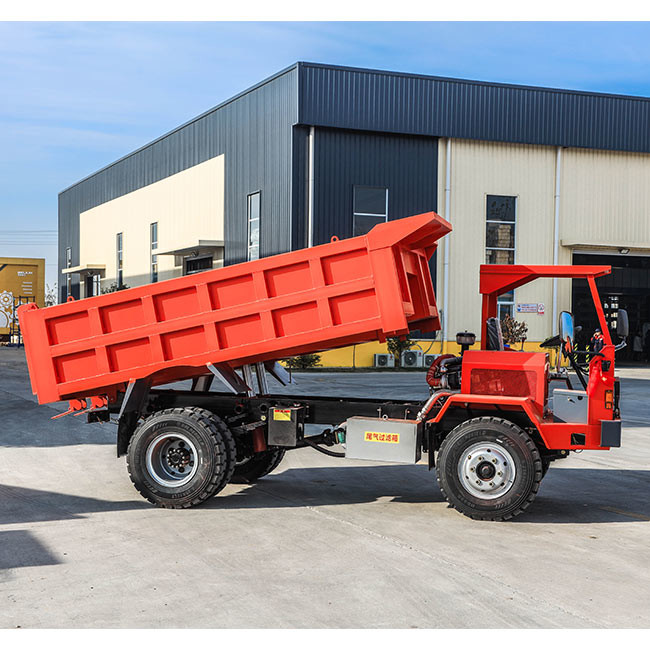

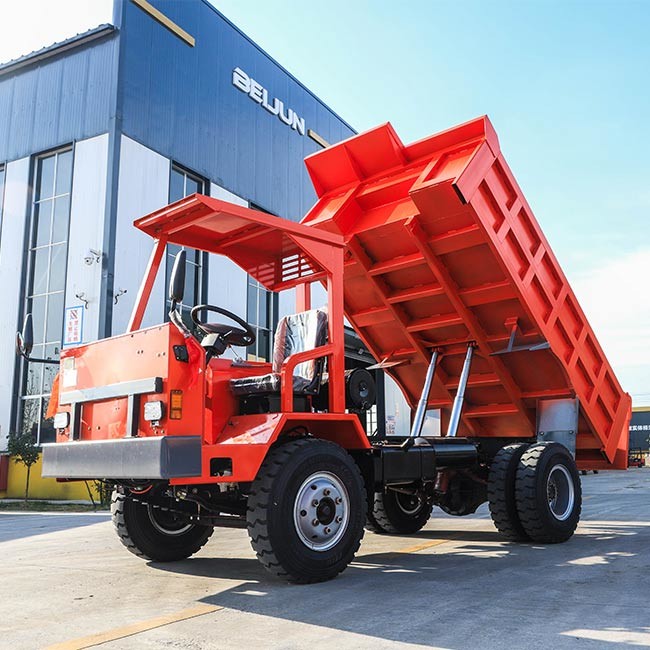

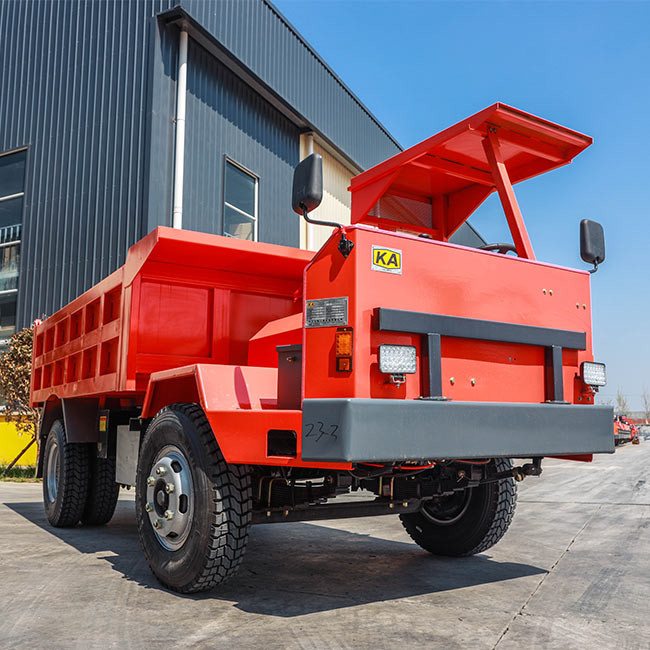

YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10 0YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10 1YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10 2YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10 3YUNEI Engine 70KW Underground Dump Truck 10 Ton Fuel Efficiency UQ-10 4
