CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y

1
MOQ
CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y
Features Gallery Product Description Request A Quote
Features
Specifications
Drilling Depth: 130m
Maximum Open Hole Caliber: 220mm
End Hole Caliber: 75mm
Drill Rod Caliber: 50mm
Drilling Angle: 90-75°
Drill Weight (No Include Power): 750kg
Spindle Speed: 142 285 570r/min
Spindle Stroke: 450mm
Max.single Line Hoisting Capacity: 1600kg
High Light:

130m Waterwell Drilling Rig

,

130m hydraulic borehole drilling machine

,

CE Waterwell Drilling Rig

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: HZ-130Y
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

HZ-130Y hydraulic core drilling rig



HZ-130Y hydraulic core drilling rig has several applications, including:


Geological survey and exploration: The rig can be used to explore the underground geological formations and collect soil and rock samples.
Basic exploration for roads: The rig can be used to investigate the soil and rock conditions for road construction projects.
High-rise buildings: The rig can be used to investigate the soil and rock conditions for the foundation of high-rise buildings.
Inspection holes for various concrete structures: The rig can drill holes in concrete structures for inspection or repair purposes.
River embankments: The rig can be used to drill holes for the installation of monitoring wells or other purposes on river embankments.
Grouting holes: The rig can drill holes for grouting in subgrade and other underground structures.
Direct grouting: The rig can drill holes and inject grout directly into the formations for stabilization or other purposes.
Civil water well: The rig can be used to drill water wells for domestic or commercial use.
Ground temperature central air conditioners: The rig can be used to drill boreholes for geothermal heating and cooling systems.



HZ-130Y hydraulic core drilling rig has several key features, including:


Hoist installation holder and double support wheel structure: The rig can withstand strong impact and provides stability during drilling.
Four groups of bearings in the vertical shaft box: The rig's gyration is rigid enough to cope with complex geological conditions such asgravel and pebble layers.
Conical clutch: The rig uses a conical clutch, which provides large transmission torque, convenient operation, and requires no maintenance.
53*59 hexagon active drill rod: The rig uses a strong and rigid hexagon-shaped drill rod that provides large torque transmission during drilling.



Technical parameters of HZ-130Y hydraulic core drilling rig



HZ-130Y hydraulic core drilling rig
Drilling depth 130m
Maximum open hole caliber 220mm
End hole caliber 75mm
Drill rod caliber 50mm
Drilling angle 90-75°
Drill weight (Not include power) 750kg
Spindle
Spindle speed 142 285 570r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 0.41/0.82/1.64m/s
Drum diameter 140mm
Wire rope diameter 13mm
Tightrope caliber 27m

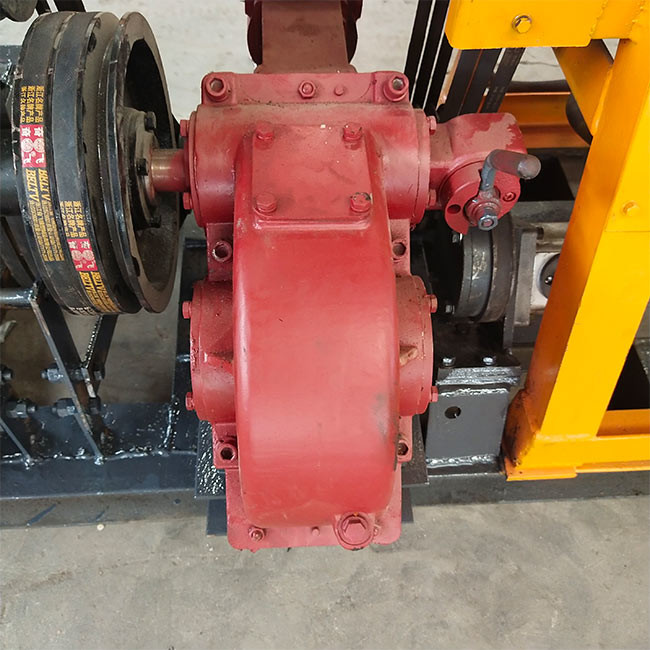

Mud pump
Type Horizontal single urn twin-action
Electric motor 95/77 l/min
Maximum pressure 1.2mpa
Work pressure 0.7mpa
Water inlet caliber 30mm
Water to exit caliber 20mm
Triangle conveyer belt B1575mm

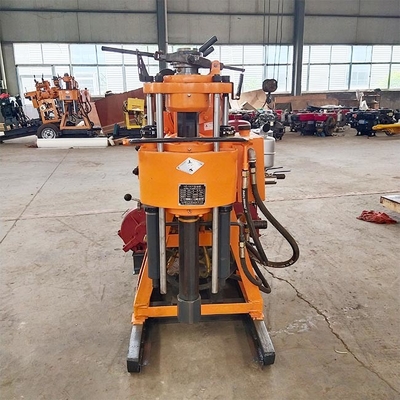

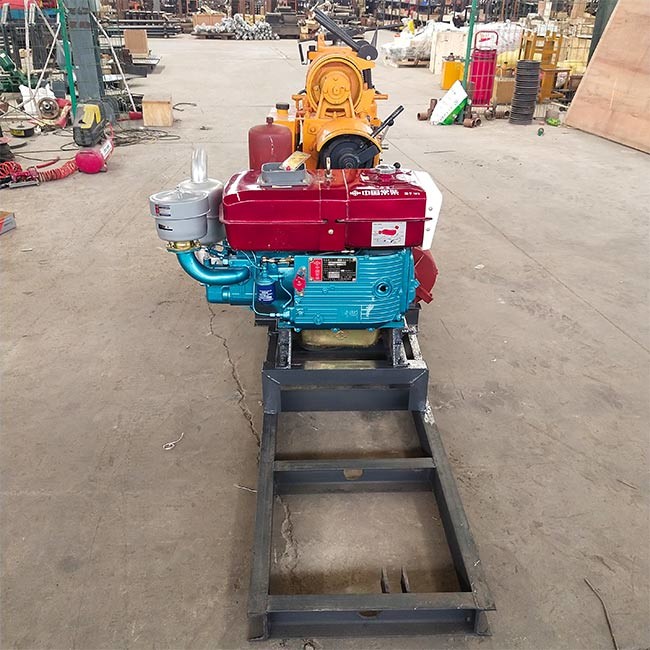

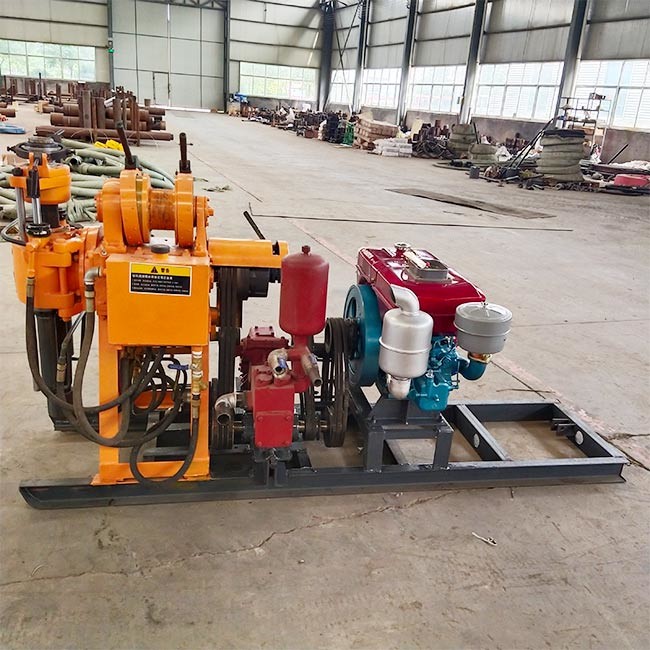

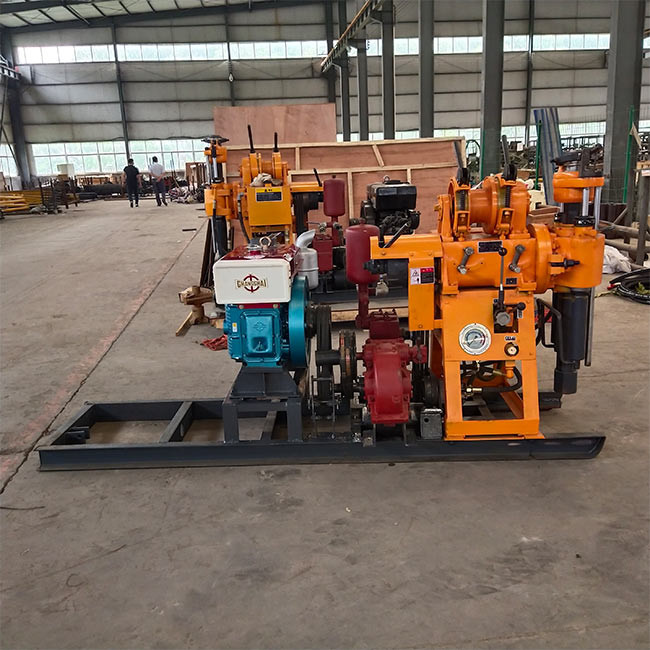

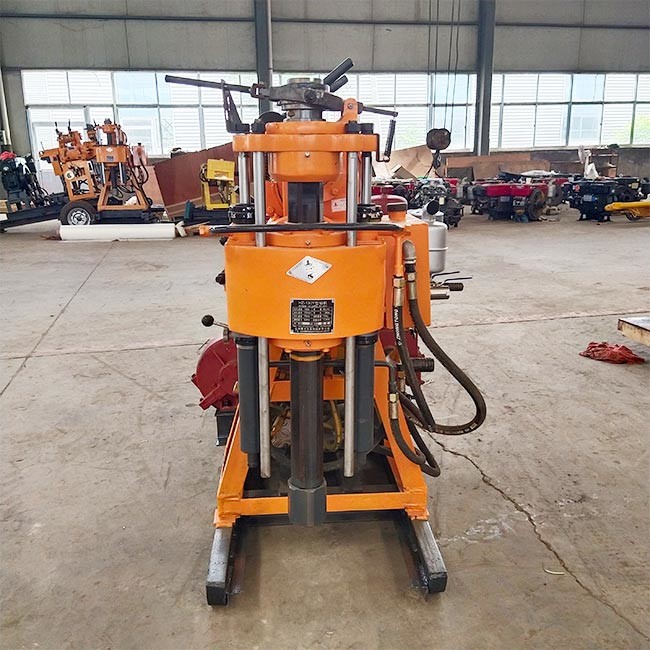

CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y  0CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y  1CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y  2CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y  3CE 130m Depth Waterwell Drilling Rig Hydraulic Borehole Drilling Machine HZ-130Y  4
