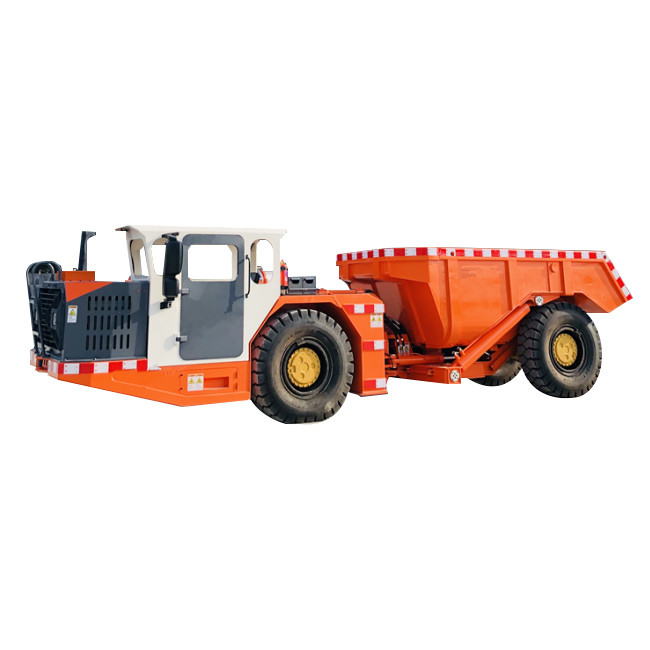

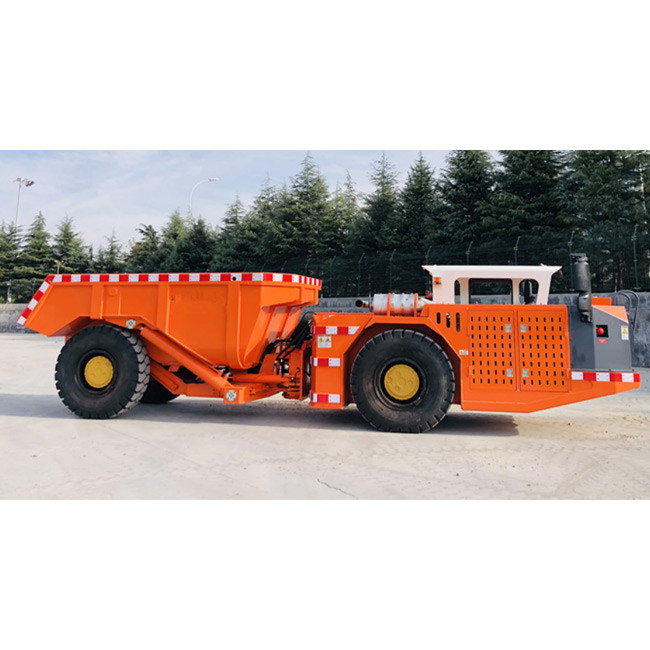

XTUT-15 Compact Underground Mining Dump Truck With A Tramming Capacity Of 15 Tons Or 16 Tons.
STUT-15 is a compact underground mining dump truck with a tramming capacity of 15 tons or 16 tons. It is easy to maneuver in confined area and very well suited for narrow vein mining.

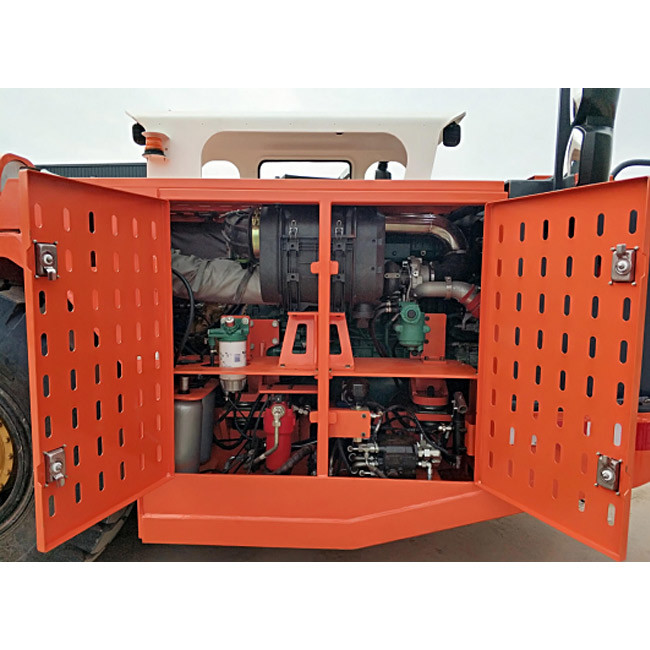

The new design of STUT-15 improves safety, maintainability and operational comfort in underground transportation, mining and construction operations. Centralized service points and module design for easy service access and fast component exchange.
The heavy-duty front and rear frames are specially designed to cope with the harsh underground environment.
Excellent load retention and fast tramming up speed ramps guaranteed, highest power to weight ratio in its class.

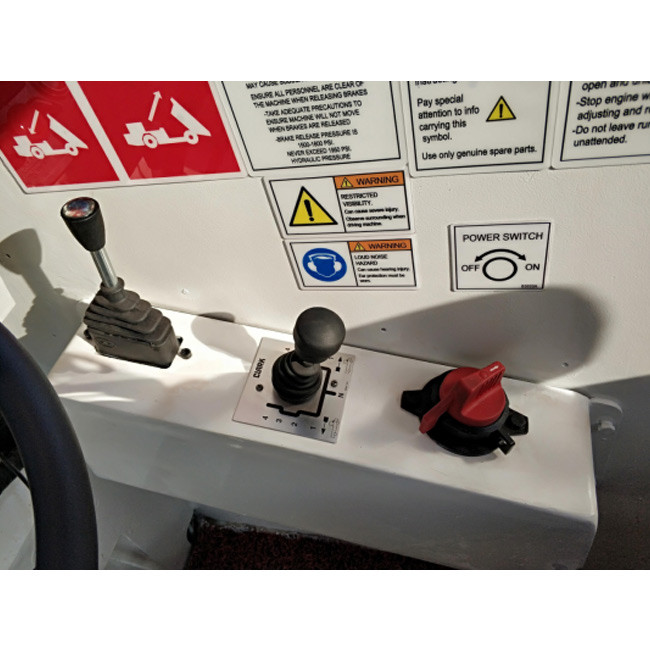

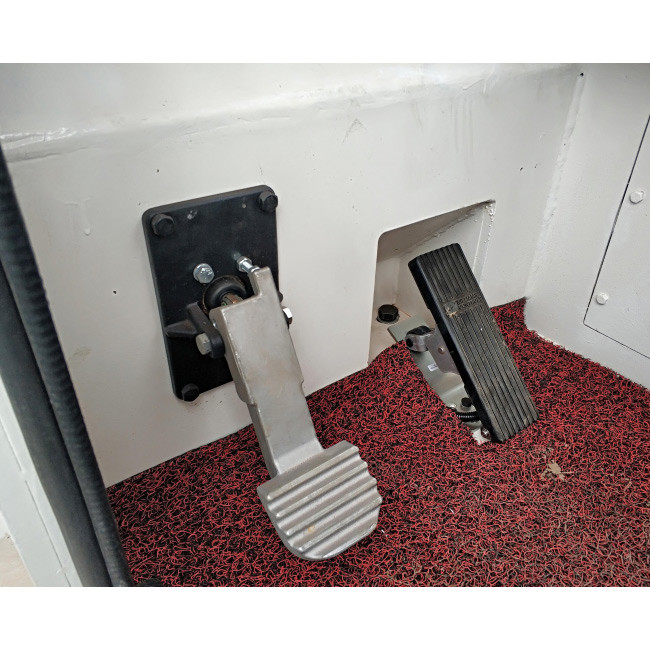

Spacious front- drive operator compartment is ergonomically designed for maximum visibility, operator can safely control and monitor machine functions at a glance. Bidirectional canopy is optional.
Best tipping angle in its class - 70 Degrees
Industry standard and regulation 设备设计所依照标准 |
|
JB/T8436 China Underground dump truck standard JB/T8436地下矿用轮胎式运矿车标准 |
|
GB21500 safety requirements of Underground dump truck standard, China GB21500地下矿用无轨轮胎式运矿车安全要求 |
|
Power train | 动力系统 |
Diesel engine 柴油机 |
VOLVO PENTA TAD850VE |
Rated power 额定功率 |
160 kW @ 2200rpm |
MAX torque 最大扭矩 |
1060 Nm @ 1350 rpm |
Number of cylinders 气缸数 |
Straight 6 cylinder |
Displacement 排量 |
7.70 L |
Cooling system 冷却系统 |
Liquid cooled Silicon oil clutch fan 水冷发动机 电子硅油离合器风扇 |
Fuel System 燃油系统 |
Integrated hand oil pump,far distance arranged fuel filter 集成手油泵,远置燃油滤清器 |
Intake system 进气系统 |
Turbo charged dry-tyre air filter,pre-filtration +two-stage filtration 低位涡轮增压器 干式空气过滤,预滤+两级过滤 |
Control system 控制系统 |
Fuel electronic control injection system 燃油电子控制喷射系统 |
Starting system 启动系统 |
24V 5.5kW starting motor 24V/5.5kW启动马达 |
Emission standard 排放标准 |
Euro stage Ⅲ 欧Ⅲ |
Exhaust system 排气系统 |
DOC+POC+silencer DOC+POC+消音器 |
Average fuel consumption, When loading at 50% 平均油耗, 负载50%时 |
29.0 L/h |
Fuel tank capacity 燃油箱容积 |
300L |
