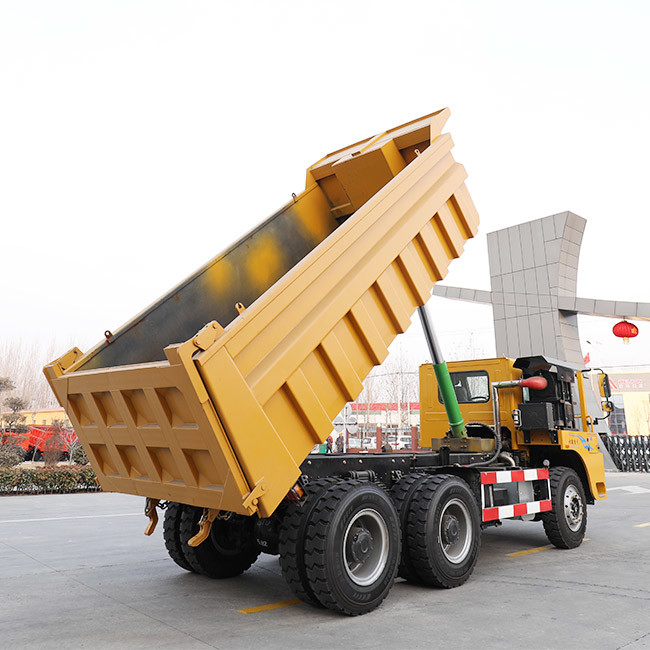

Product Features of 6*4 Underground Mining Dump Truck 35 Tons Dumper With High Quality
The Beijun underground tunnel dump truck boasts excellent trafficability, with a compact structure and small turning radius that make it highly maneuverable in narrow spaces inside the roadway ramp. This makes it a versatile option for mining companies operating in confined underground areas.
Safety is a top priority for the Beijun truck, with improved lamps and electrical components, enhanced waterproofing and moisture-proofing capabilities, and dedicated anti-slip tires. These features provide the truck with strong obstacle-crossing capabilities and high safety standards, ensuring a reliable and secure operation in underground mining operations.
The Beijun underground tunnel dump truck is equipped with a powerful engine, including large torque, excellent grade, and starting performances. This enables the truck to handle heavy loads and steep inclines with ease, improving efficiency and productivity for mining companies.
The truck's scientific design and configuration, based on the mining vehicle design concept, ensure that it has a strong bearing capacity, 1.5 times that of an ordinary road vehicle. This makes it a reliable choice for transporting heavy loads in underground mining operations. Additionally, the truck's robust construction, including its lifting mechanism, cargo compartment, suspension frame, and vehicle frame, enhances its durability and reliability in the harsh underground environment. Furthermore, the truck's user-friendly design, including its ergonomic cabin and intuitive controls, provide a comfortable and efficient working experience for operators, maximizing their productivity and safety.
Product parameters of 6*4 Underground Mining Dump Truck 35 Tons Dumper With High Quality
| Model | UQ-35Q |
| Engine Model | YC6MK375-T300 |
| Engine Power | 276kW |
| Total Dimension | 7748x2500x2700 |
| Transmission Model | 10JS220 |
| Transmission Gear | 10 Forward Gear, 2Back Gear,Rear High Speed Controller |
| Drive Mode | 6x4 |
| Front Axle Model | Styer Axle |
| Rear Axle Model | Styer Axle |
| Tire Model | 12.00R20 |
| No.of Bottom Spring Plate | Front 11 PCS, Rear 12 PCS |
| Dimension of Bottom Spring Plate | Front 90*16 Rear 90*24 |
| Size of the Bucket:Length×width×height | 5400x2500x1350mm |
| Type of Bucket | Right Angle Type |
| Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Closed Cabin |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 35 Tons |
