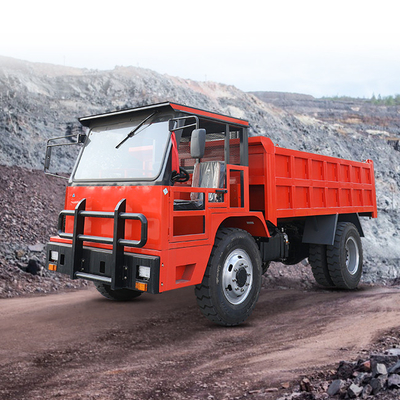

Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck
Light duty trucks, with the characteristics of flexibility, economy, and versatility, are widely used in fields such as logistics transportation, urban distribution, engineering construction, and municipal cleaning. The exterior design of light trucks is diverse, with mainstream designs including semi enclosed cargo boxes, flat cargo boxes, and box cargo boxes. There are many specialized facilities inside the cargo box, such as cargo traction frames, positioning devices, rigging, etc., which can maintain the safety and convenience of cargo placement. Dump trucks are heavy machinery used to transport large volumes of loose materials such as dirt, sand, ores, gravel, and demolition waste across mining, civil or major construction sites.
1.Major components from industry respected suppliers.
2.Simple yet very robust design.
3.Very competitive pricing compared to its counterparts coming from well-known brands.
4.The mini scooptram is especially suitable for mining in narrow and low roadways and difficult mining areas.
5.This model adopts a closed hydrostatic and stepless speed change driving system composed of variable piston pump and variable piston motor, which is stable and comfortable in operation and high in production efficiency.
6.This model uses a wheeled central articulated structure, which has good transit performance; .
7.This model integrates working, parking and emergency braking, which is more safe and reliable.
We are the honesty and good reputation company which can provide construction machinery,such as wheel loaders,excavators,forklifts,bulldozers,motor grades,dump track,other cranes,truck tailers and road rollers.If you find any of the machines interested, please kindly let me know and we can offer more relevant photos and detailed specification to you.We will also give you the best price and the best quality products.
Model | UQ-15 |
Engine Model | YUCHAI 4108 with Turbocharge |
Engine Power | 118KW/160HP |
Total Dimension | 5600*2300*2000mm |
Transmission Model | FASITE 8JS118 |
Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller |
Drive Mode | 4x2 |
Front Axle Model | 1098 |
Rear Axle Model | 153 |
Tire Model | 825-16 Radial steel tire, Rear Double Tyre One Side, |
No.of Bottom Spring Plate | Front 12 PCS, Rear 10PCS, Spare 8PCS |
Dimension of Bottom Spring Plate | Length 90mm, Width 16mm |
Size of the Bucket:Length×width×height | 4000mm*2200mm*800mm |
Type of Bucket | U Type |
Thickness of Bucket Steel Plate | bottom 10mm side 8mm |
Unloading Type | Hydraulic Double Top Dump |
Steering Type | Hydraulic power steering |
Braking Type | Air Brake |
Cabin | Canopy |
Driving Position | Left Hand Drive |
Cooling sytem | Standard Water Cooling System |
Loading Capacity | 15 Tons |
