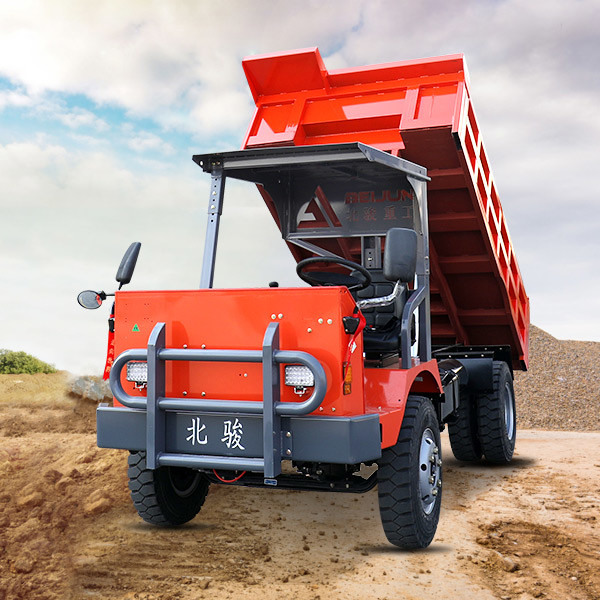

10 Tons Underground Articulated Truck Bearing Load Riding Self Unloading

1
MOQ
10 Tons Underground Articulated Truck Bearing Load Riding Self Unloading
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: YUNEI 4102 With Turbocharge
Engine Power: 70KW/95HP
Transmission Model: Wanliyang 545
Drive Mode: 4x2
Dimension Of Bottom Spring Plate: Length 69mm, Width 11mm
Loading Capacity: 10 Tons
Type: Underground Mining Dump Truck
Application: Mine
High Light:

10 Tons Underground Articulated Truck

,

Self Unloading Underground Articulated Truck

,

10 Tons Dump Truck Underground

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-10
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 8 -14 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Product Description

Product parameters of 10 Tons Dump Trucks



10 tons mining dump trucks mainly used for underground mines, above ground mines pit and mining areas, muddy roads, tunnel construction, Building construction, swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice etc.The truck Certified to mine safety standards. It have the characteristics of large traction, good climbing performance and strong transportation capacity.The truck Dimension is small, Suitable for working in narrow mine tunnel. Exhaust gas treatment is Water filter purifier, reducing air pollution when working in underground mines. UQ-10 is suitable for a variety of complex and harsh road conditions such as agriculture, forestry orchard transportation, freight yard loading, water conservancy construction, infrastructure engineering, mines and other places.



1. Improved design of main structure like two and half beam to assure large load and security;
2. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
3. Best diesel engine and battery group supplier to assure a robost performance;
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.



We focus on Trucks, Hydraulic heavy construction machinery and hydraulic spare parts for equipment. We could supply regular and special made parts, attachments, accessories such as hydraulic final drive, hydraulic pump, motor and other spare parts for most of the machinery, as well as the machinery, such as bulldozer, forklift, reach stack, wheel loader, excavator, dumper truck, transport truck, truck mixer, truck concrete pump, motor grader, backhoe loader, crawler crane, truck crane, mobile crane, rough terrain crane, drill machine, road roller, compactor roller, etc.



Model UQ-10
Engine Model YUNEI 4102 with Turbocharge
Engine Power 70KW/95HP
Total Dimension 4800*1800*1600mm
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 750-16 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 71mm, Width 10mm
Size of the Bucket:Length×width×height 3200mm*1800mm*600mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 10 Tons



10 Tons Underground Articulated Truck Bearing Load Riding Self Unloading 010 Tons Underground Articulated Truck Bearing Load Riding Self Unloading 110 Tons Underground Articulated Truck Bearing Load Riding Self Unloading 210 Tons Underground Articulated Truck Bearing Load Riding Self Unloading 310 Tons Underground Articulated Truck Bearing Load Riding Self Unloading 4
