Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining

1
MOQ
Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Model: Yuchai YC6L340-33
Engine Power: 243KW
Transmission Model: FASITE RT11509C
Drive Mode: 6x4
Dimension Of Bottom Spring Plate: "Front 90*16 Rear 90*25
Cabin: Closed Cabin With A/C
Type Of Bucket: Right Angle Type
Loading Capacity: 25 Tons
Cooling Sytem: Standard Water Cooling System
High Light:

25 tons underground dump truck

,

243kw underground dump truck

,

6x4 underground mining truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: UQ-25Q
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 6 - 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

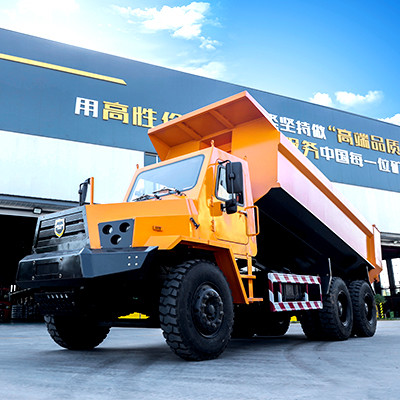

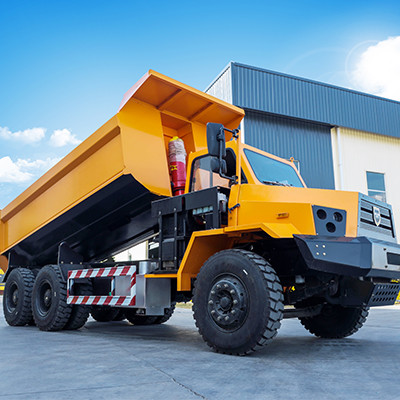

Product Features of 25 Ton Underground Mining Dump Truck



This dumper truck is professionally designed according to the characteristics of underground mining. four-wheel drive ,Low speed torque strong climbing ability. Four-wheel spring plate shock absorption, Four-wheel solid tire with Strong carrying capacity.Double hydraulic cylinder steering,easy to operating.Exhaust gas treatment of metal catalysis and filtering devices, effectively reducing emissions.side cab driving design can be lower the height for this dumper truck. A dump truck is a vehicle that unloads goods by itself by hydraulic or mechanical lift. Also called dump truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device. The carriage of the dump truck is divided into two types: rearward tipping and sideward tipping. The movement of the piston rod is controlled by the control system. Backward tipping is more common. Pushing the piston rod causes the carriage to tip over, and a few tipping in both directions.



1. Transport vehicles can operate freely in mud roads.
2. The specific size can be customized according to the requirements.

3. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.
4. Unique design with humanization.
5. Multi-functional machine with a variety of optional accessories.



We have fully considered the customer demands and finalize the cnguration after thousands of high-strengh industrial assesments in diferent construction environments. Approved by national military field testing and certification, the performance is highly adaptive to all complex working conditions that cannot be coped with by traditional dump truck. Our trucks are widely used for surface mining, water conservancy construction, short-distance transporation, removing mountains for filling seas or other construction projects.



Product parameters of  25 Ton Underground Mining Dump Truck


Model UQ-25
Engine Model Yuchai YC6L340-33
Engine Power 243KW
Total Dimension 7900x2420x2720mm
Transmission Model FASITE RT11509C
Transmission Gear 10 Forward Gear, 2Back Gear,Rear High Speed Controller
Drive Mode 6x4
Front Axle Model Styer Axle
Rear Axle Model Styer Axle

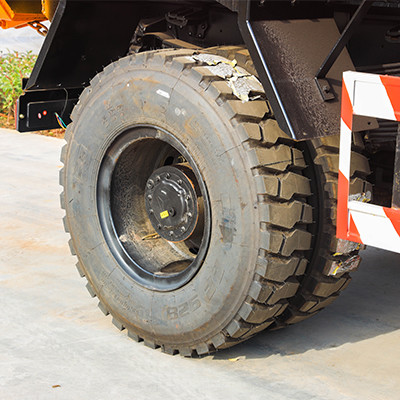

Tire Model 1100R20 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate Front 90*16
Rear 90*24
Size of the Bucket:Length×width×height 5000x2300x1200mm
Type of Bucket Right Angle Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Closed Cabin with A/C
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 25 Tons



Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining 0Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining 1Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining 2Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining 3Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining 4Loading 25 Tons Underground Articulated Truck 243kw Engine Powered For Mining 5
