Rock Excavation Underground Articulated Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Dimensions (LxWxH) (mm): 7735×1949×2357
Curb Weight (T): 12.5
Bumper Bucket Volume (m3): 6
Rated Load Capacity (T): 12
Maximum Traction Force (kN): 125
Loading Height (mm): 1958
Minimum Ground Clearance (mm): 316
Approach Angle (°): 14
High Light:

Rock Excavation Underground Articulated Truck

,

Rock Excavation articulated tipper truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: BJUK-12
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

China Articulated Underground Mining Dump Truck For Medium Scale Rock Excavation



BJUK-12 underground truck is designed to provide high performance and reliability in narrow-vein mining conditions. Its key features, such as four-wheel drive, lateral swing mechanism, articulated frame design, high-strength structure, self-unloading carriage, automatic central lubrication system, and advanced braking system, make it a versatile and efficient vehicle for mining operations. Additionally, the ROPS and FOPS certifications ensure the safety of the operator while working in the mine. Overall, the BJUK-12 is a valuable asset for any mining operation that requires a compact and maneuverable underground truck with high payload capacity and durability.



the Specification of Underground Truck BJUK-12
Dimensions (LxWxH) (mm) 7735×1949×2357
Curb weight (T) 12.5
Bumper Bucket volume (m3) 6
Rated load capacity (T) 12
Maximum traction force (kN) 125
Maximum height of the machine when unloading (mm) 3880
Loading height (mm) 1958
Minimum ground clearance (mm) 316
Minimum turning radius (outside) (mm) 7263
Approach angle (°) 14
Gradeability (heavy load) (°) 14
Maximum lift angle of the car box (°) 69
Dumper lift time (s) 12
Dumper drop time (s) 6
Maximum forward speed (Km/h) 28
Reverse maximum speed (Km/h) 10
Diesel engine brand Weichai Power
Diesel model WP6G175E331
Diesel Emissions EUROIII
Diesel engine power 129kW@2200rpm
Max torque/speed 750Nm/1700rpm
Air intake system Dry three-stage filtration
Exhaust system Exhaust gas purifier
Torque Converter Model YJ320B-1
Gearbox BS428
Tire 14.00-24

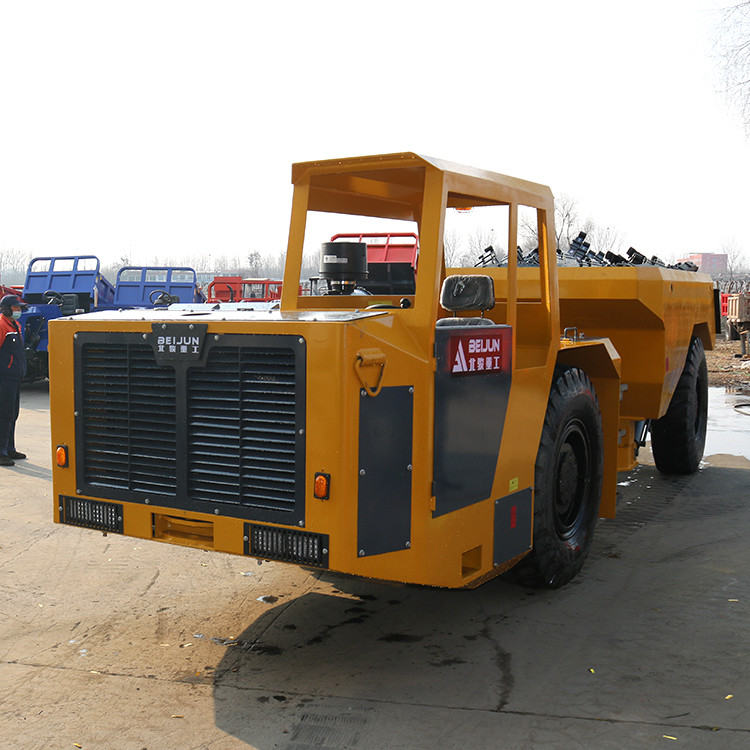

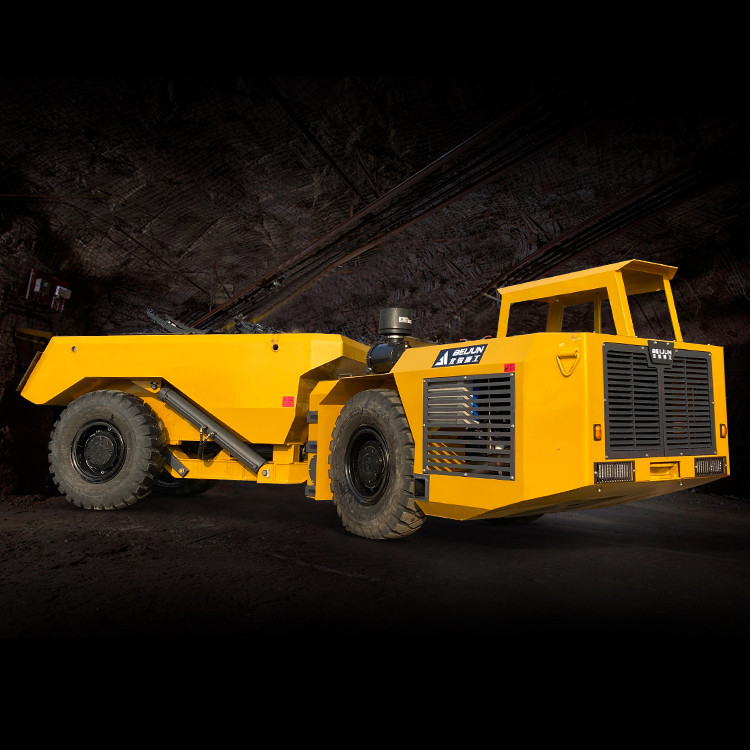

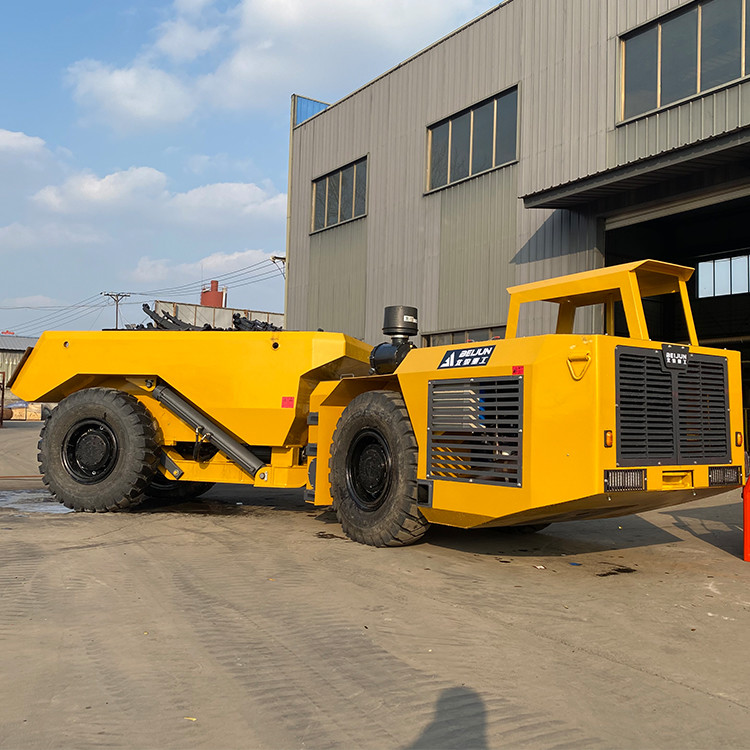

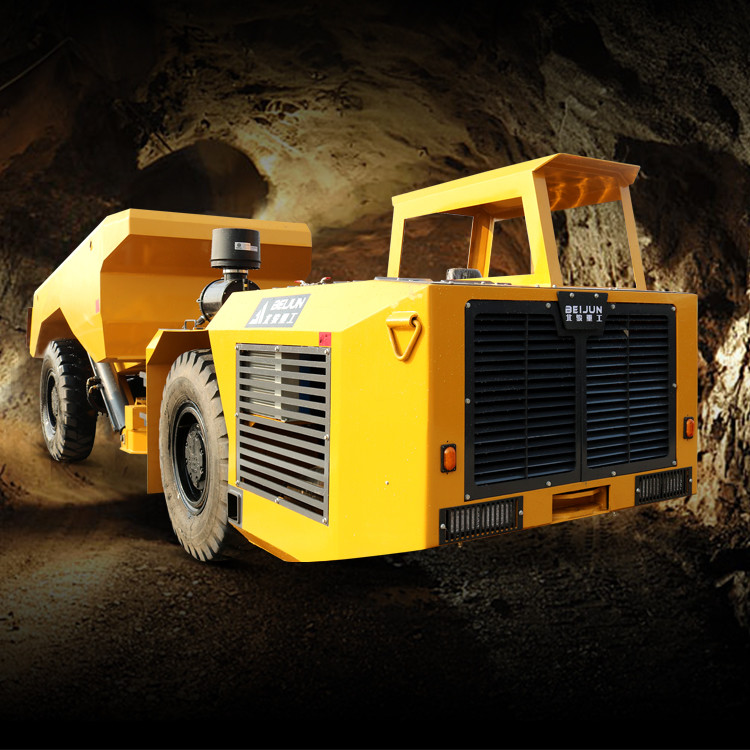

Rock Excavation Underground Articulated Truck 0Rock Excavation Underground Articulated Truck 1Rock Excavation Underground Articulated Truck 2Rock Excavation Underground Articulated Truck 3
