12Ton Underground Articulated Dump Truck

1
MOQ
12Ton Underground Articulated Dump Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Dimensions (LxWxH) (mm): 7735×1949×2357
Curb Weight (T): 12.5
Bumper Bucket Volume (m3): 6
Rated Load Capacity (T): 12
Maximum Traction Force (kN): 125
Loading Height (mm): 1958
Minimum Ground Clearance (mm): 316
Approach Angle (°): 14
High Light:

12Ton Underground Articulated Dump Truck

,

12Ton heavy articulated truck

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO
Model Number: BJUK-12
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

12 Ton Mining Underground Articulated Dump Truck For Energy Mining



BJUK-12 underground truck is designed to meet the demands of narrow-vein mining conditions, and its key features make it a reliable and efficient vehicle for mining operations. The four-wheel drive and lateral swing mechanism provide excellent maneuverability, while the articulated frame design allows for a small turning radius and greater flexibility. The high-strength structure and self-unloading carriage ensure durability and ease of operation, and the automatic central lubrication system helps to maintain the truck's performance. The advanced braking system, ROPS and FOPS certifications provide safety measures for the operator while working in the mine. Overall, the BJUK-12 is a valuable asset for any mining operation that requires a compact and maneuverable underground truck with high payload capacity and durability.



the Specification of Underground Truck BJUK-12
Dimensions (LxWxH) (mm) 7735×1949×2357
Curb weight (T) 12.5
Bumper Bucket volume (m3) 6
Rated load capacity (T) 12
Maximum traction force (kN) 125
Maximum height of the machine when unloading (mm) 3880
Loading height (mm) 1958
Minimum ground clearance (mm) 316
Minimum turning radius (outside) (mm) 7263
Approach angle (°) 14
Gradeability (heavy load) (°) 14
Maximum lift angle of the car box (°) 69
Dumper lift time (s) 12
Dumper drop time (s) 6
Maximum forward speed (Km/h) 28
Reverse maximum speed (Km/h) 10
Diesel engine brand Weichai Power
Diesel model WP6G175E331
Diesel Emissions EUROIII
Diesel engine power 129kW@2200rpm
Max torque/speed 750Nm/1700rpm
Air intake system Dry three-stage filtration
Exhaust system Exhaust gas purifier
Torque Converter Model YJ320B-1
Gearbox BS428
Tire 14.00-24

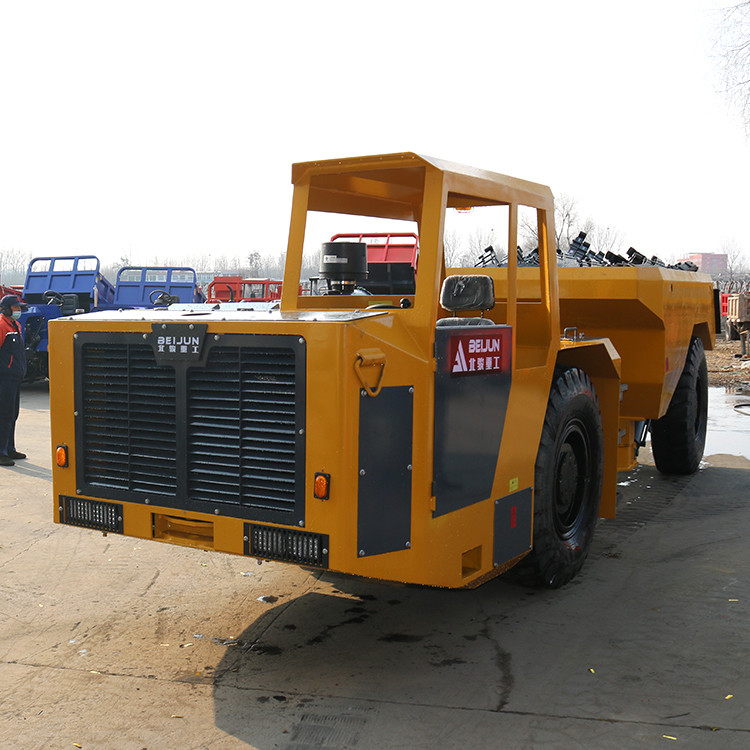

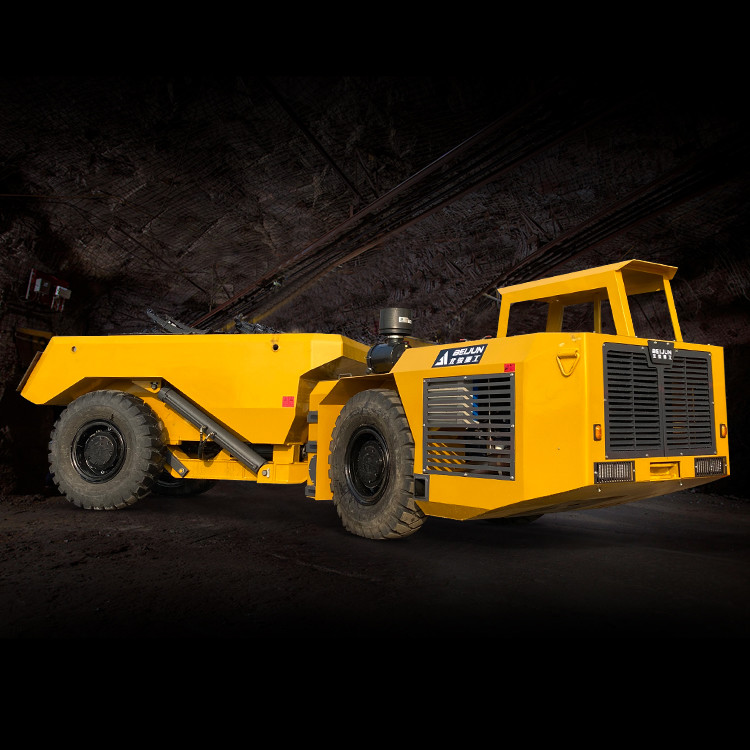

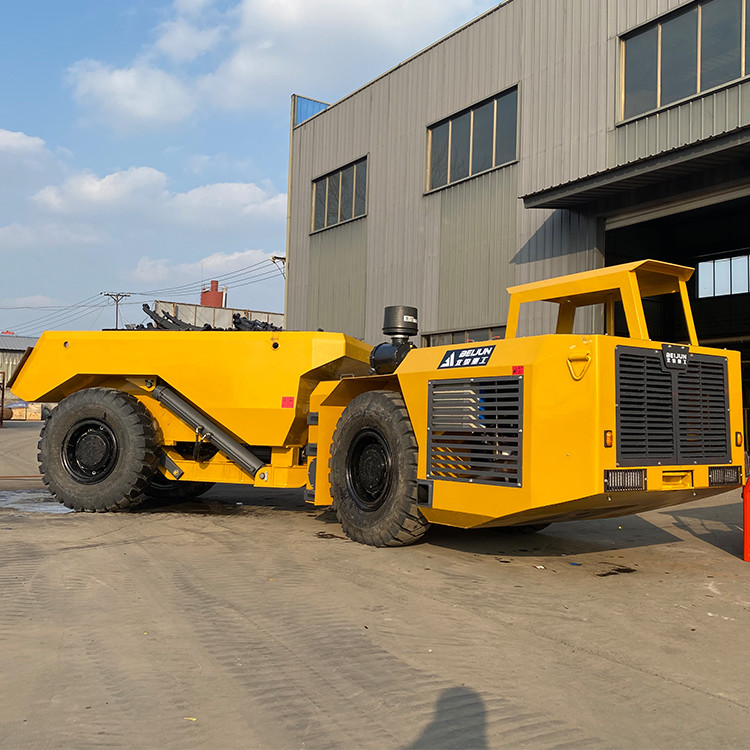

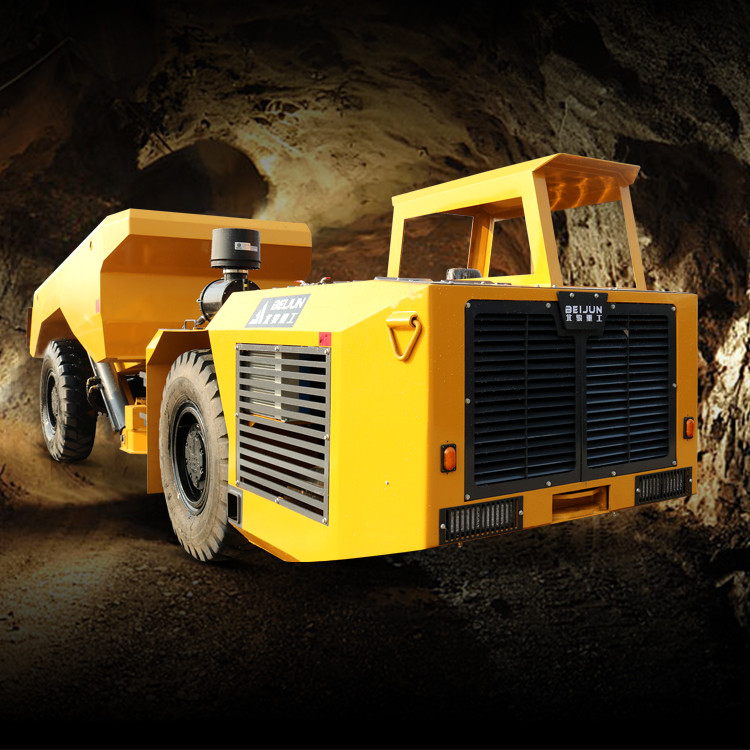

12Ton Underground Articulated Dump Truck 012Ton Underground Articulated Dump Truck 112Ton Underground Articulated Dump Truck 212Ton Underground Articulated Dump Truck 3
