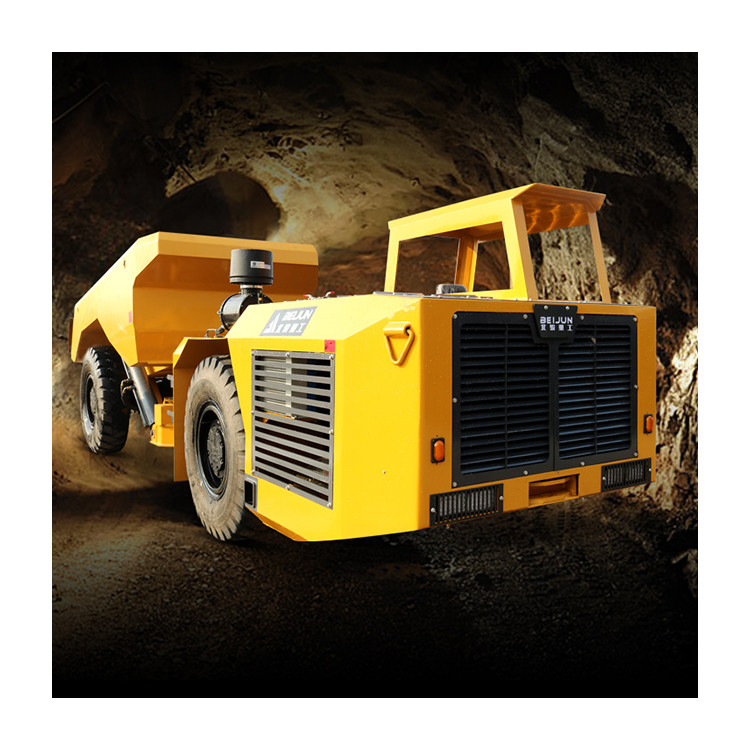

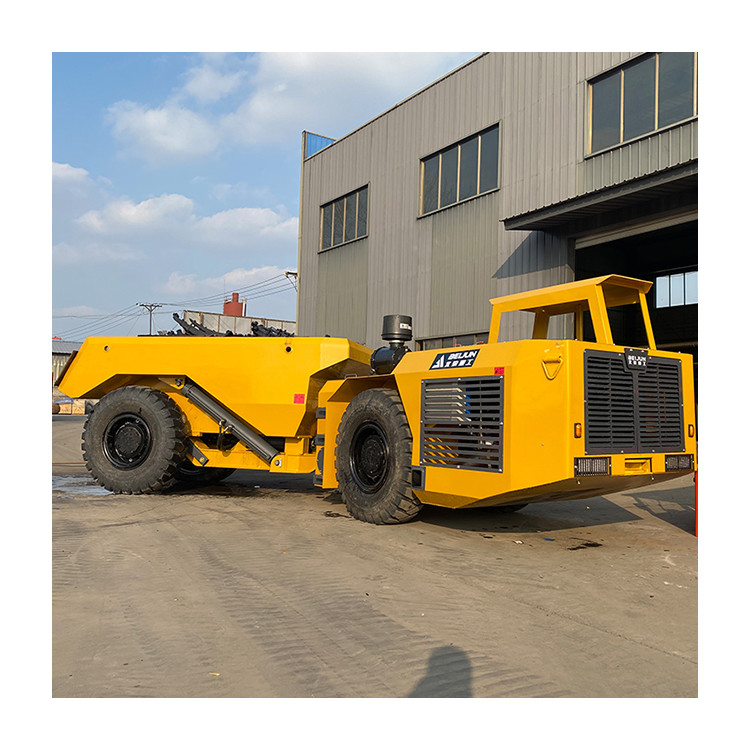

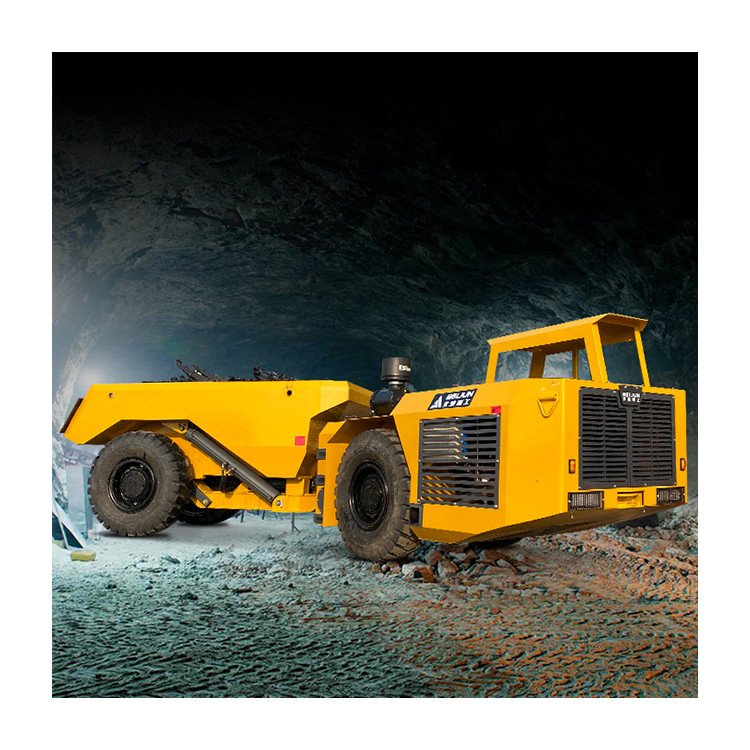

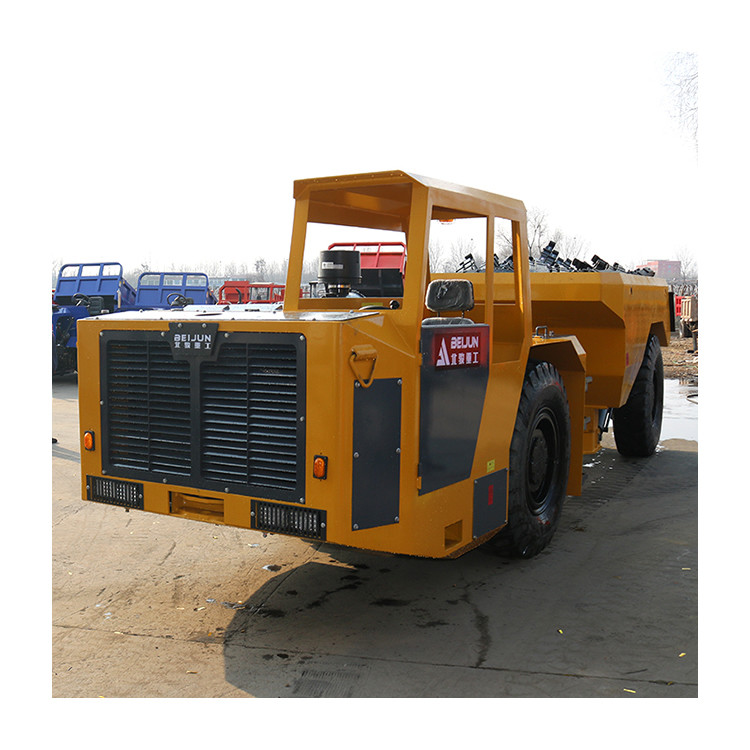

12 Tons Diesel Articulated Underground Mine Dump Truck BJUK-12
BJUK-12 underground truck is specifically designed to operate in narrow-vein mining conditions. Its key features, such as four-wheel drive, lateral swing mechanism, articulated frame design, high-strength structure, self-unloading carriage, automatic central lubrication system, and advanced braking system, make it a reliable and efficient vehicle for mining operations. The ROPS and FOPS certifications ensure the safety of the operator while working in the mine. Overall, the BJUK-12 is a valuable asset for any mining operation that requires a compact and maneuverable underground truck with high payload capacity and durability.
the Specification of Underground Truck BJUK-12 | |
Dimensions (LxWxH) (mm) | 7735×1949×2357 |
Curb weight (T) | 12.5 |
Bumper Bucket volume (m3) | 6 |
Rated load capacity (T) | 12 |
Maximum traction force (kN) | 125 |
Maximum height of the machine when unloading (mm) | 3880 |
Loading height (mm) | 1958 |
Minimum ground clearance (mm) | 316 |
Minimum turning radius (outside) (mm) | 7263 |
Approach angle (°) | 14 |
Gradeability (heavy load) (°) | 14 |
Maximum lift angle of the car box (°) | 69 |
Dumper lift time (s) | 12 |
Dumper drop time (s) | 6 |
Maximum forward speed (Km/h) | 28 |
Reverse maximum speed (Km/h) | 10 |
Diesel engine brand | Weichai Power |
Diesel model | WP6G175E331 |
Diesel Emissions | EUROIII |
Diesel engine power | 129kW@2200rpm |
Max torque/speed | 750Nm/1700rpm |
Air intake system | Dry three-stage filtration |
Exhaust system | Exhaust gas purifier |
Torque Converter Model | YJ320B-1 |
Gearbox | BS428 |
Tire | 14.00-24 |
