XYC-200 vehicle-mounted hydraulic water well drilling rig is a versatile and efficient tool designed to perform a variety of drilling tasks, including water well drilling, exploration drilling, and geotechnical drilling. Its compact design, high-performance mud pump, shifting device, and hydraulic folding mast make it easy to use and transport on different job sites. The rig can be used for a variety of applications, including exploring soil and rock conditions for construction projects, drilling holes in concrete structures, installing monitoring wells on river embankments, grouting subgrade and other underground structures, drilling and injecting grout directly into formations, drilling water wells for domestic or commercial use, and drilling boreholes for geothermal heating and cooling systems. Overall, the XYC-200 vehicle-mounted hydraulic water well drilling rig is a valuable asset for any drilling operation that requires versatility, efficiency, and ease of use.
| Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig | ||
| Drilling depth(m) | 30-200 | |
| Drilling diameter(mm) | 300-75 | |
| Drilling angel(mm) | 90-75 | |
| Spindle rotating speed(r/min) | 64/128/287/557 | |
| Spindle stroke(mm) | 450 | |
| Main hoisting capacity (single line)(Kg) | 1600 | |
| Main hoisting line capacity (m) | 35 | |
| Hoisting speed(r/s) | 17/35/75/151 | |
| Wireline diameter(mm) | 12.5 | |
| Mast height(mm) | 7000 | |
| Mast effective height(mm) | 6500 | |
| Kelly/active pipe(mm) | 59*53 | |
| Drill rod(mm) | 42/50/60 | |
| Drill rig weight(kg) | 1150 | |
| Power unit | Model | ZS1115 diesel engine |
| Rated power | 14.7kw/2200rpm | |
| BW-160 mud pump | Rated flow(l/min) | 160 |
| Rated pressure(mpa) | 1.3 | |
| Driving power(kw) | 5.15 | |
| Main machine weight (kg) | 190 | |
| Dimension(mm) | 1110*725*965 | |

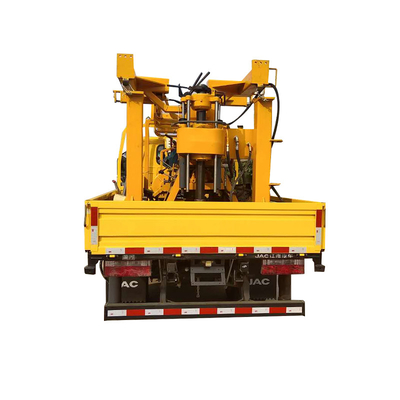

| Chassis | light truck(Pictures of vehicle-mounted drilling rigs for reference only) | |
