Rock Bolting Rig Wider Type

1
MOQ
USD 145000-200000 Set
Price
Rock Bolting Rig Wider Type
Features Gallery Product Description Request A Quote
Features
Specifications
Front Axle/rear Axle: DANA 112
Tyre: 9.00R20
Departure/Approach Angle: 17°/20°
Front Hydraulic Outrigger: 2pcs Extensible
Rear Hydraulic Outrigger: 2pcs
Engine: Cummins
Rated Power: 53KW
Battery: 120Ah
High Light:

Rock Bolting Rig Wider Type

,

Wider Type jumbo rig

Basic Infomation
Place of Origin: China
Brand Name: Beijun
Certification: CE,ISO,TUV
Model Number: DS3
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 14-30 days
Supply Ability: 100 Set/Sets per Month
Product Description

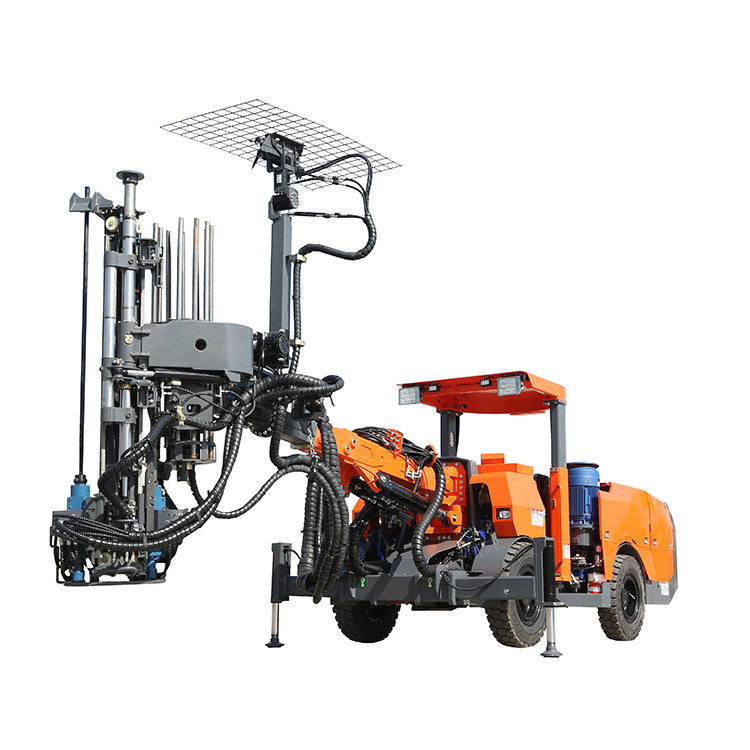

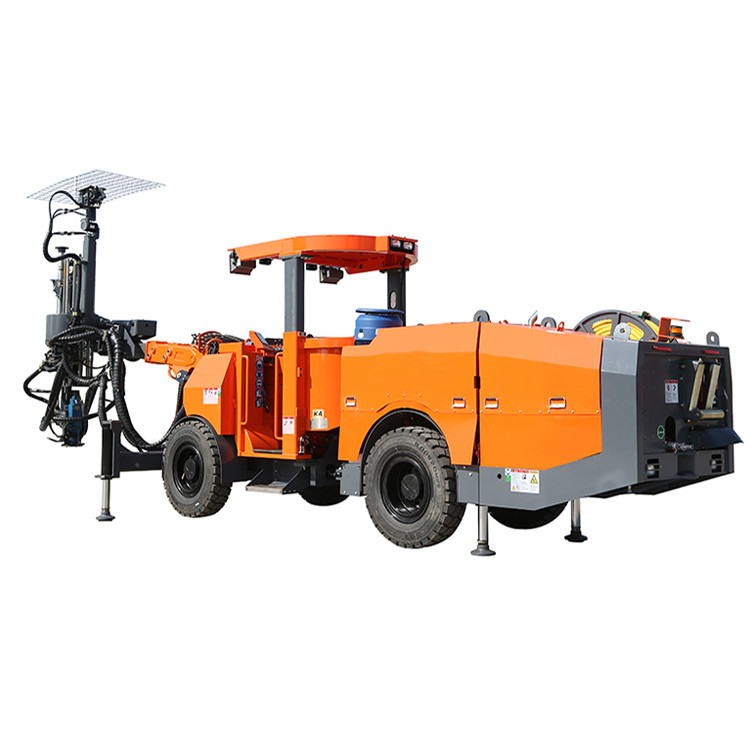

DS3 Mining Hydraulic Rock Bolting Rig (Wider Type)



DS3 Hydraulic Rock Bolting Rig (Wide Type):

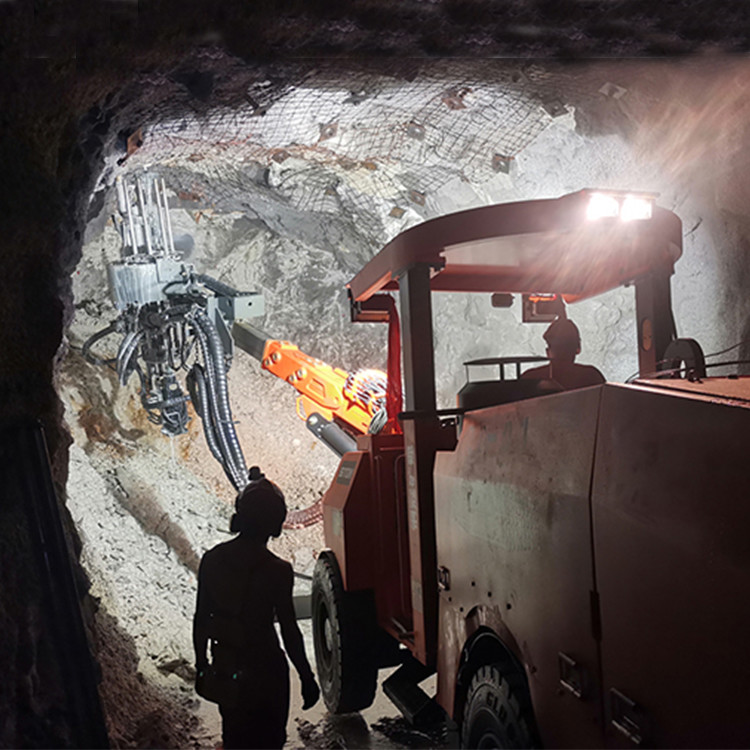

The mining hydraulic rock bolting rig has the functions of drilling,bolting and meshing, and is especially suitable for mine bolting support operations.It can be customized for pipe seam bolt resin bolt, combination of pipe seam bolt + resin operation



Technical Data



Rock Drill
Model WHC25 WHC28
Shank Adapter R32 R32
Hole Diameter mm 32-51 32-64
Max Impacting Power Kw 8 10
Impact rate Hz 55-65 53
Hydraulic pressure bar 15 16
Rotation motors Separate rotation
Rotation speed rpm 300 300
Max. Rotation Torque Nm 401 482
Lub. air con sump.L/s 5 5
Weight Kg 71 103
Noise dB(A) 120 120



Feeder and Bolting head
Model BU25 BU25F BU25D
Rock drill×Qty HC25×2
Length of bolt 1800 2000 2200
Type of bolt(optional) Steel bar/steel bar+resin/resin
Bolting rod bank 10
Drilling rod length mm 2175 2475 2700
Hole diameter mm 1950 2185 2460
propulsion force KN 7.5 7.5 7.5
Total Length mm 2870 3165 3395
*Remarks:Custom design available
